Home automation: Mini-I/O

	Summary As a very needed addition to my home automation project, the Mini-I/O features physical inputs and outputs for those applications where wireless control is insufficiently reliable or unsuitable.

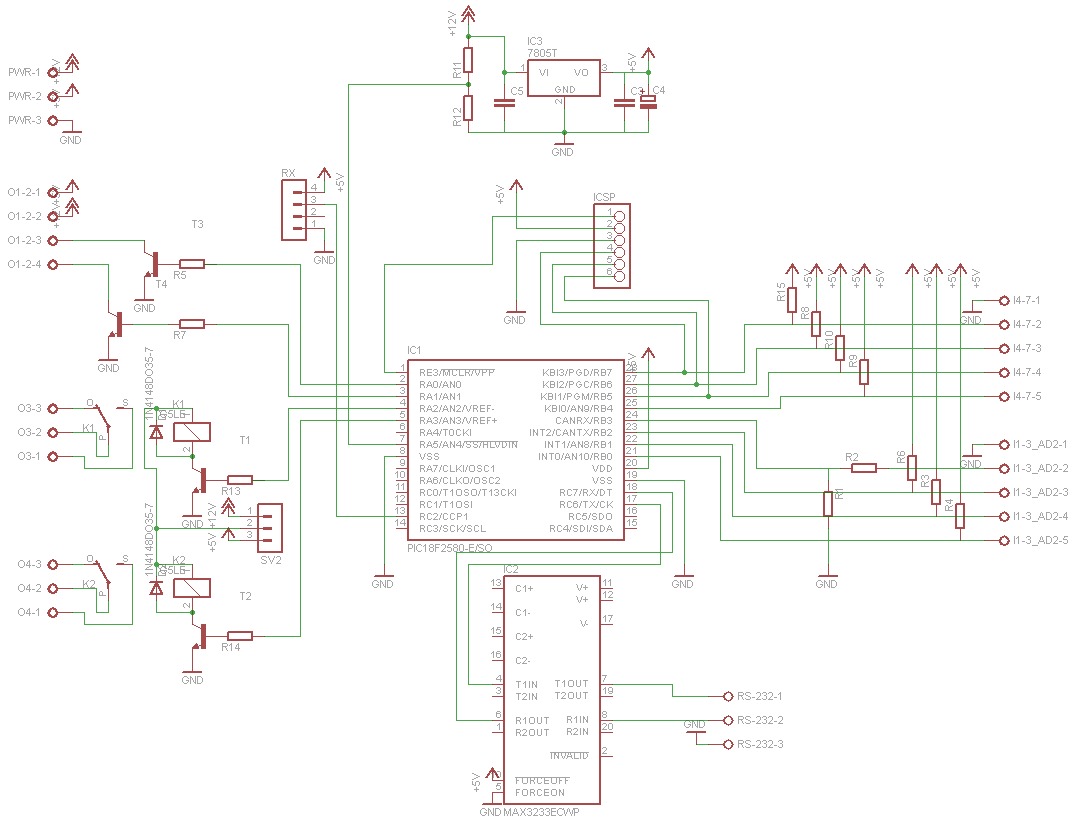

Functionality

Two relay outputs (10A/250V) and two open-collector outputs (800mA)
Seven digital inputs and one analog input
An additional analog input is internally connected to the voltage input
433.92 MHz ASK-receiver for internal decoding of ESIC wireless temperature sensors and more
RS-232 connection

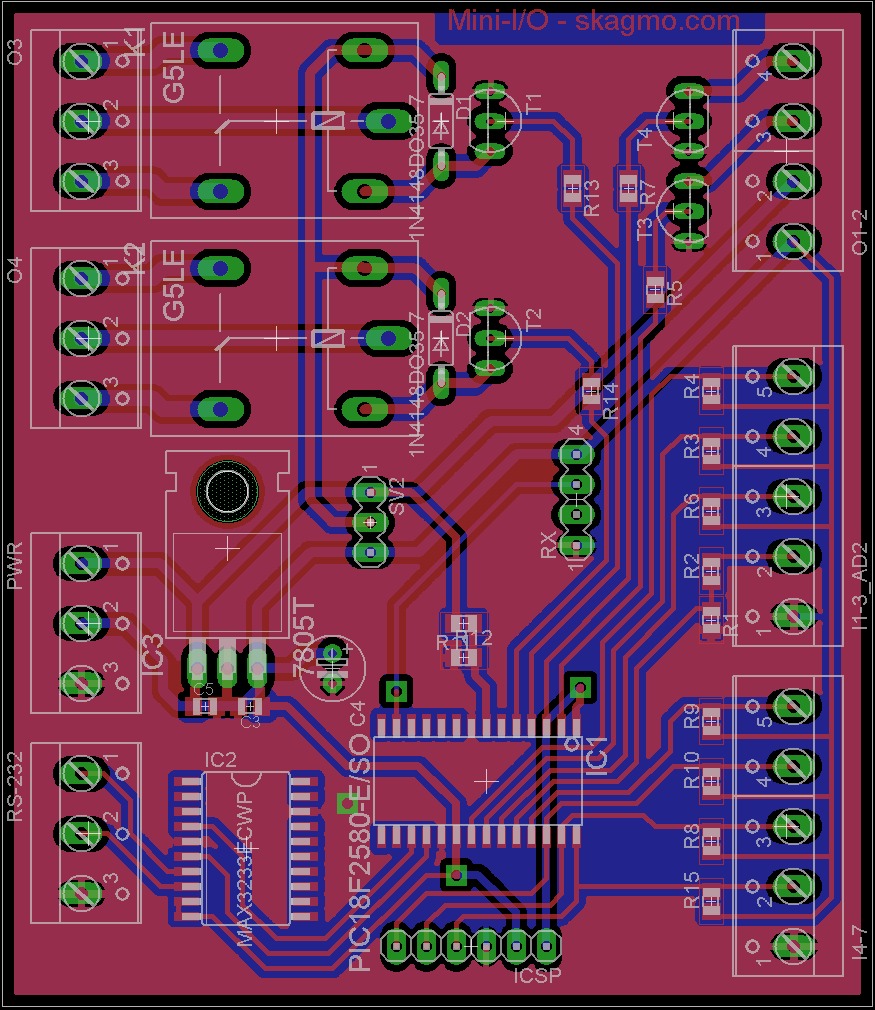

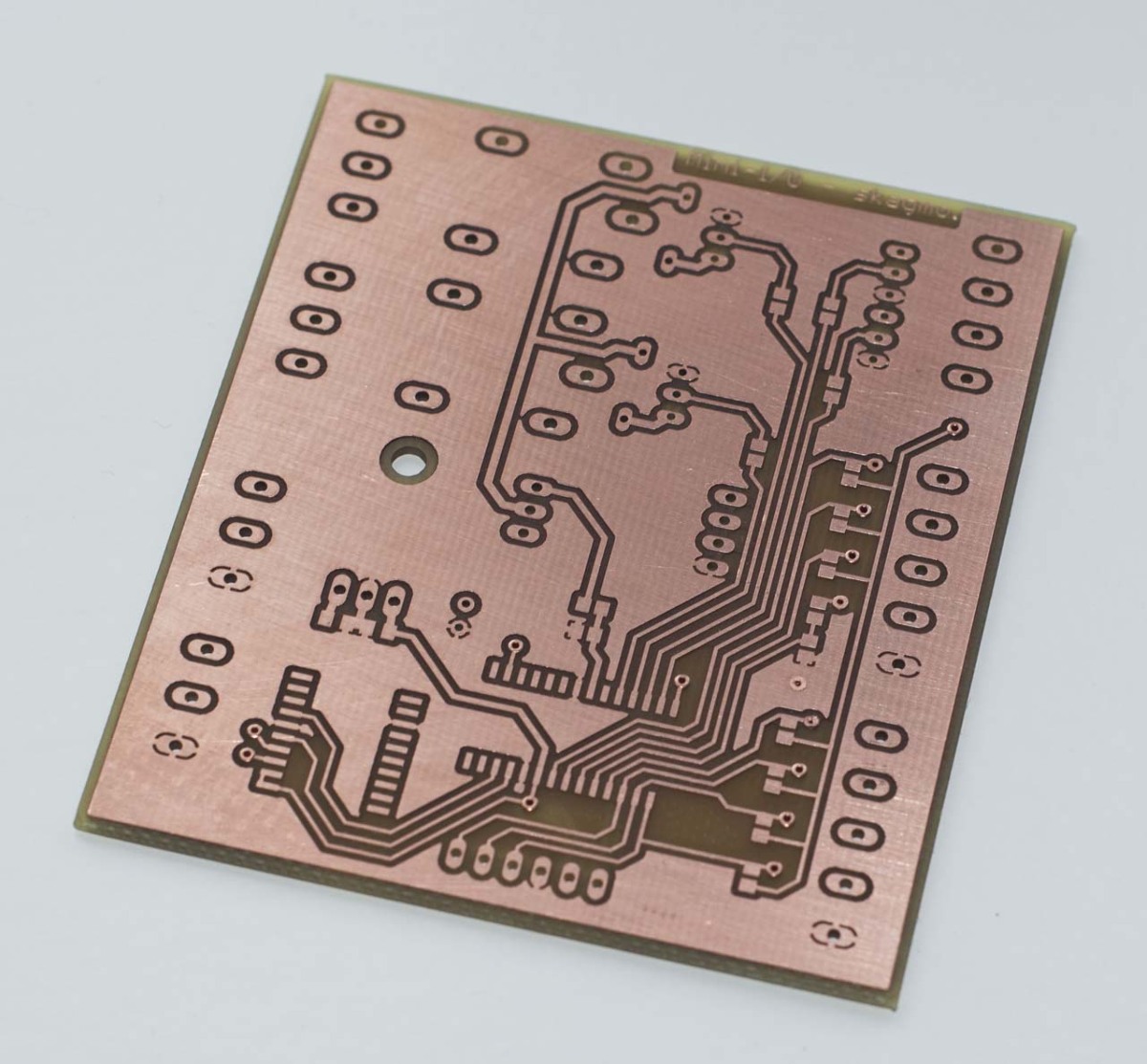

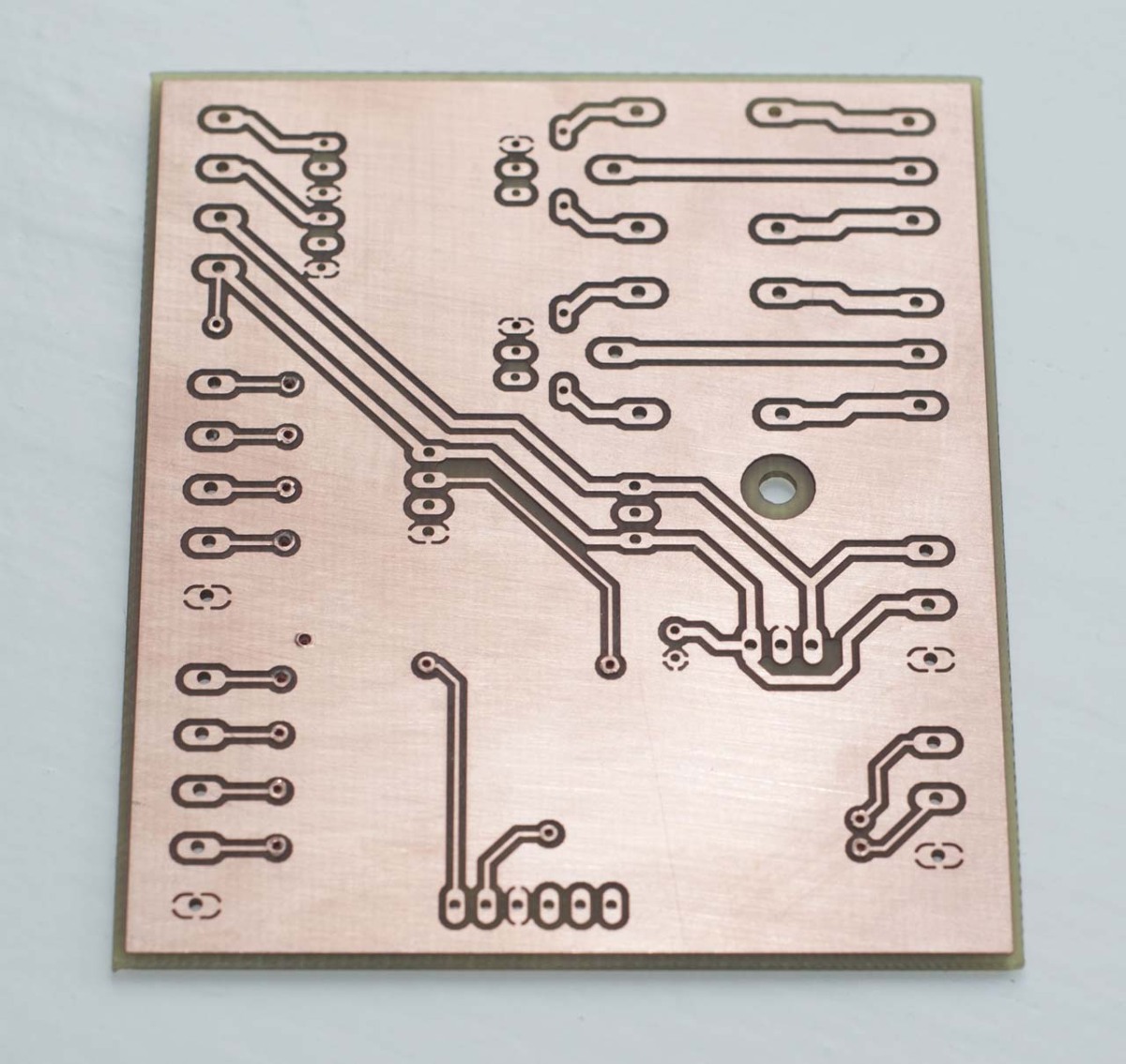

The first PCB prototype was milled at my university (NTNU). Many thanks to Terje Mathiesen at IET for helping me out with this!

Video-clip of the CNC-router going through the drill-layer.

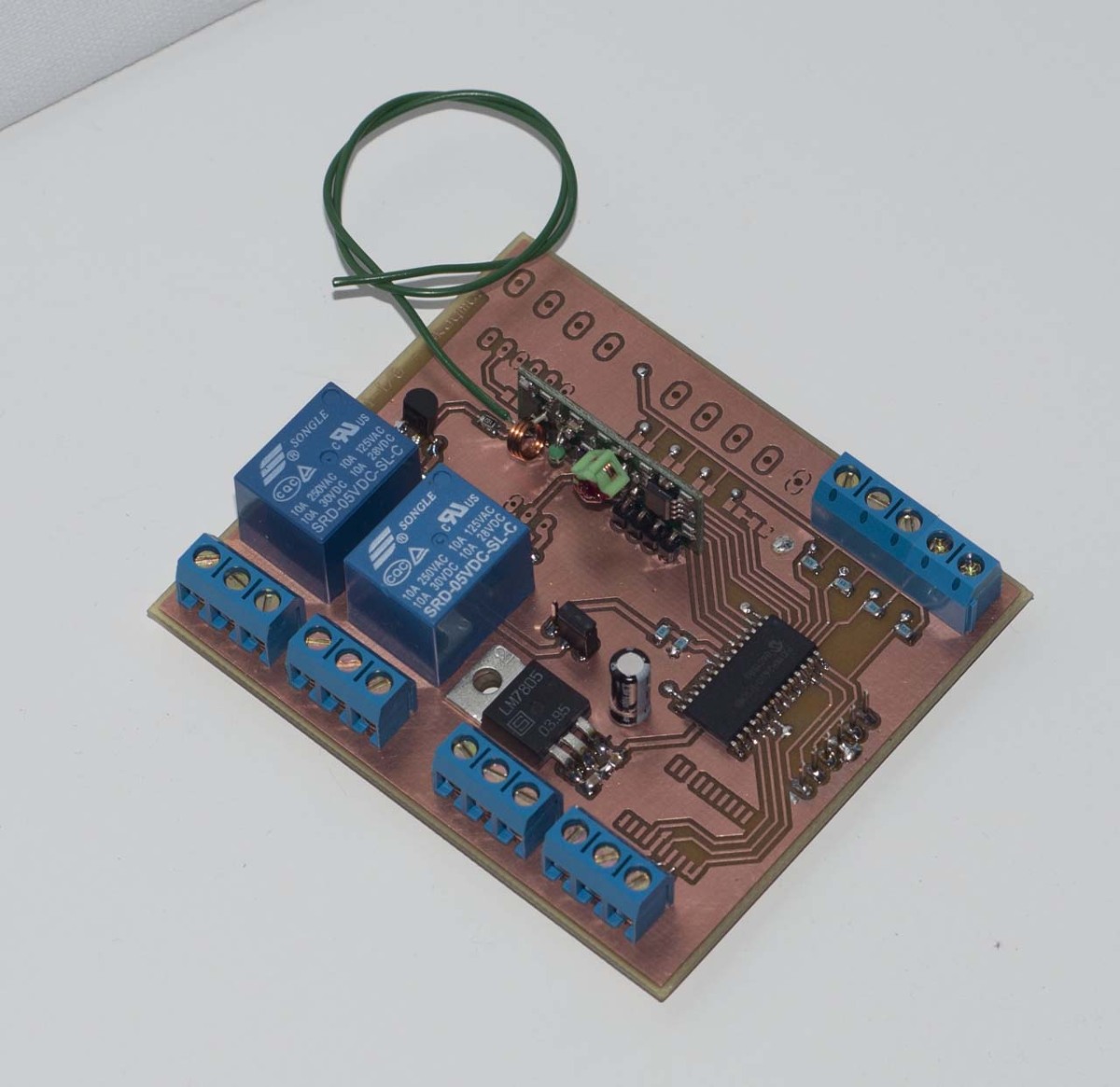

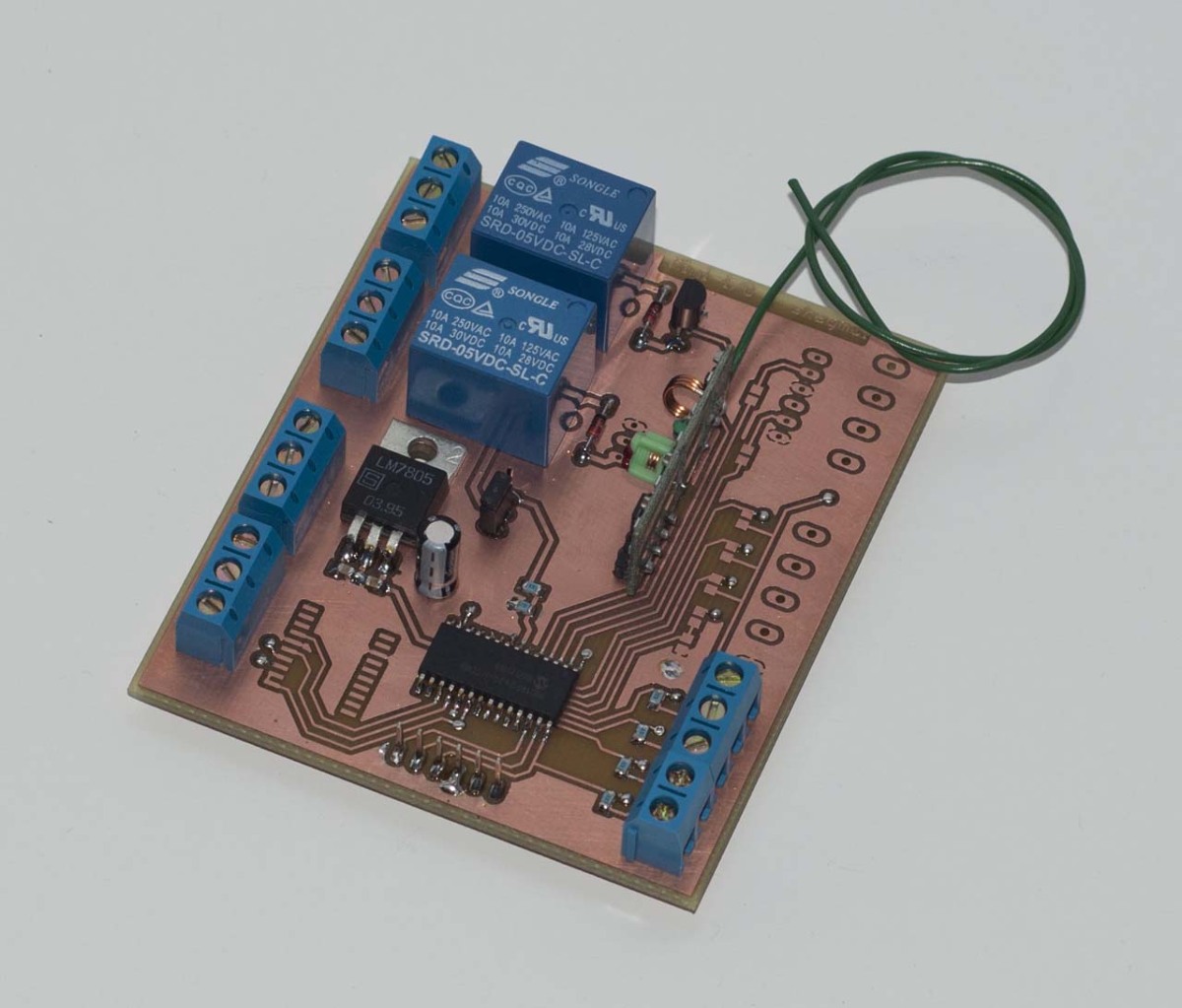

I'm still missing a few components which are already ordered, but this was what I had at home.
