UAV/FPV-project: Skywalker aerial platform

	Summary After various problems with my earlier aerial platform I realized it was too small and made installation much more complex than it really had to be. The solution? I bought a 168 cm wingspan Skywalker, and built the plane with FPV-/UAV-use and expandability in mind.

Equipment

Permanently mounted gear

RC RX: Thomas Scherrer UHF LRS system

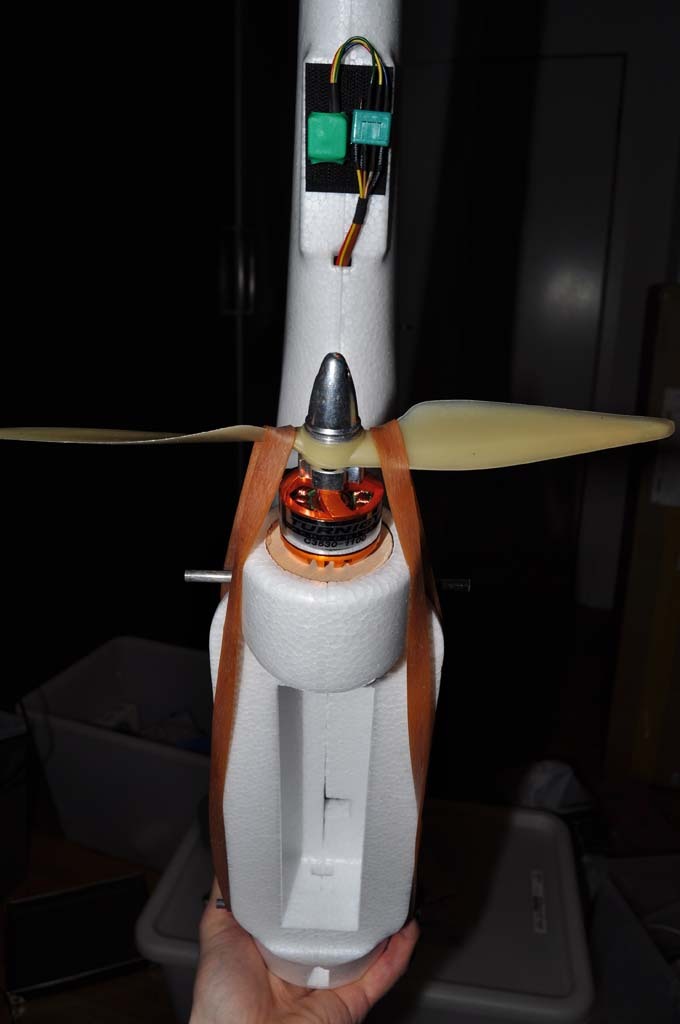

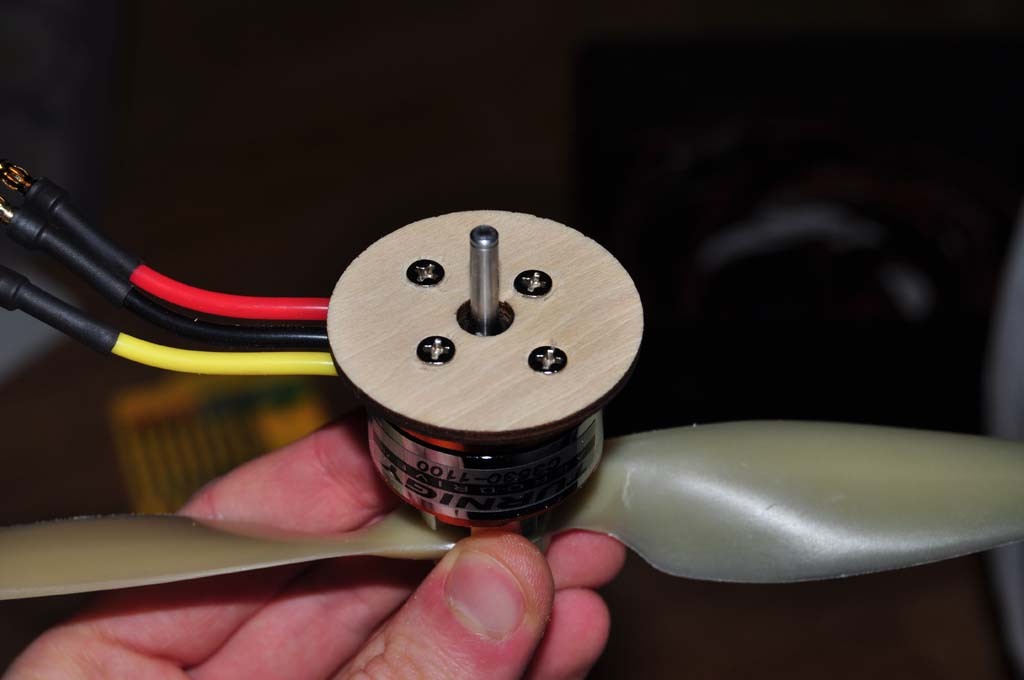

Motor: Turnigy 35-30C 1100kv outrunner with 9x6 propeller

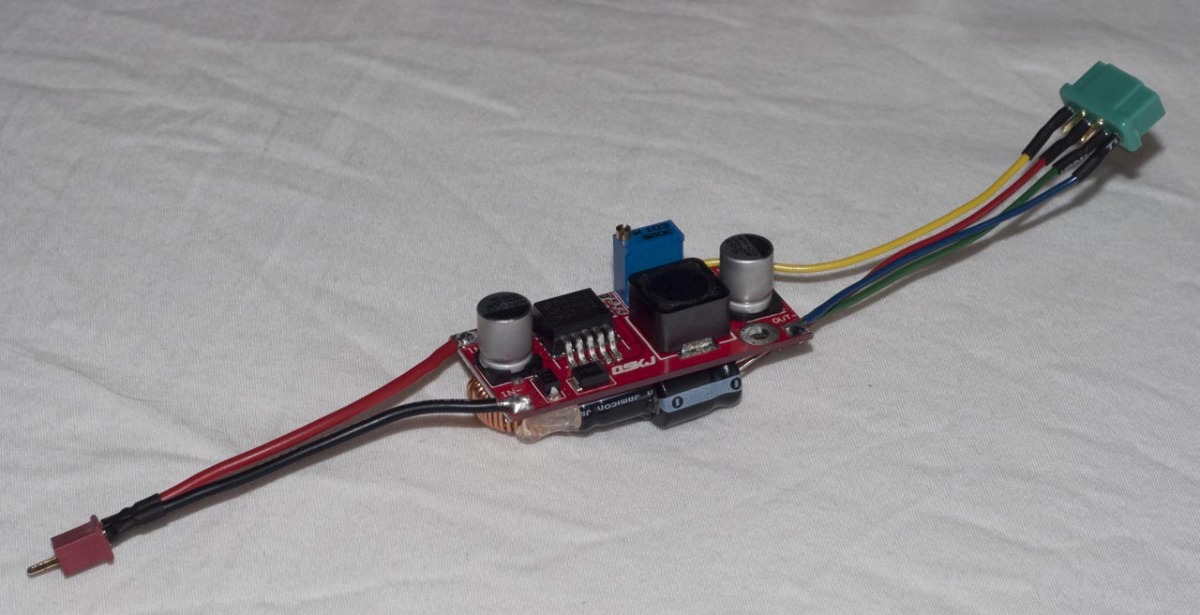

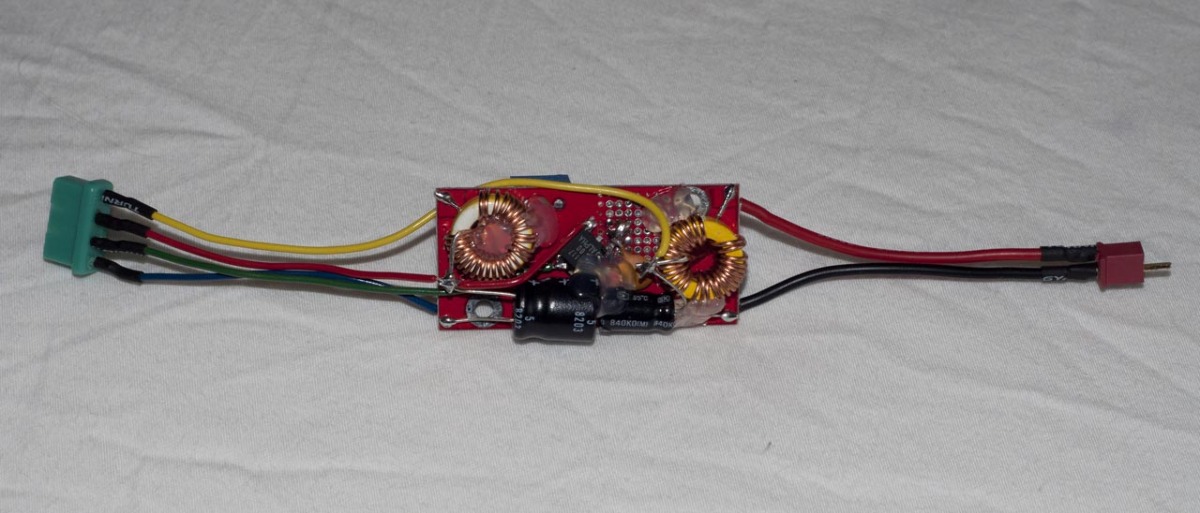

ESC: Mystery 40A ESC with 3A UBEC
Servos: 4x HXT900, superior RFI-immunity with screened cables to the tail servos
Antennas: Two 433MHz dipoles fed with RG-174 and terminated with MCX-connectors for the UHF RC-system

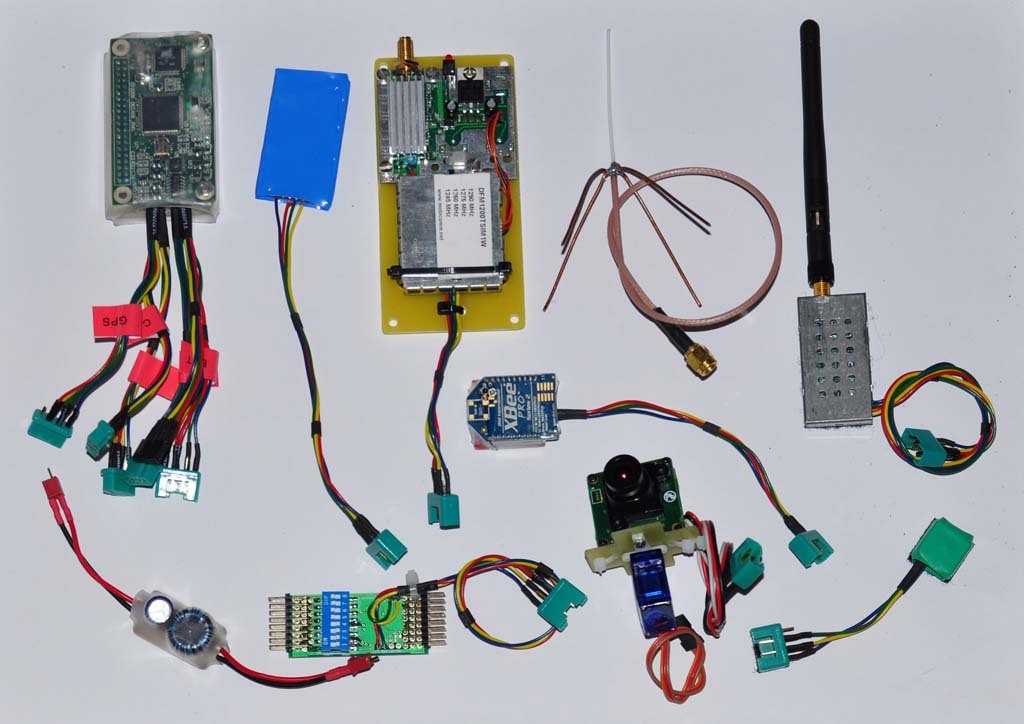

Extra FPV/UAV-gear

GPS: MTK 3329-based 10Hz with special firmware allowing binary output format
AHRS: Sparkfun 9DOF Razor IMU with AHRS firmware
OSD: Custom build with a PIC18F2620 and BOB4-module

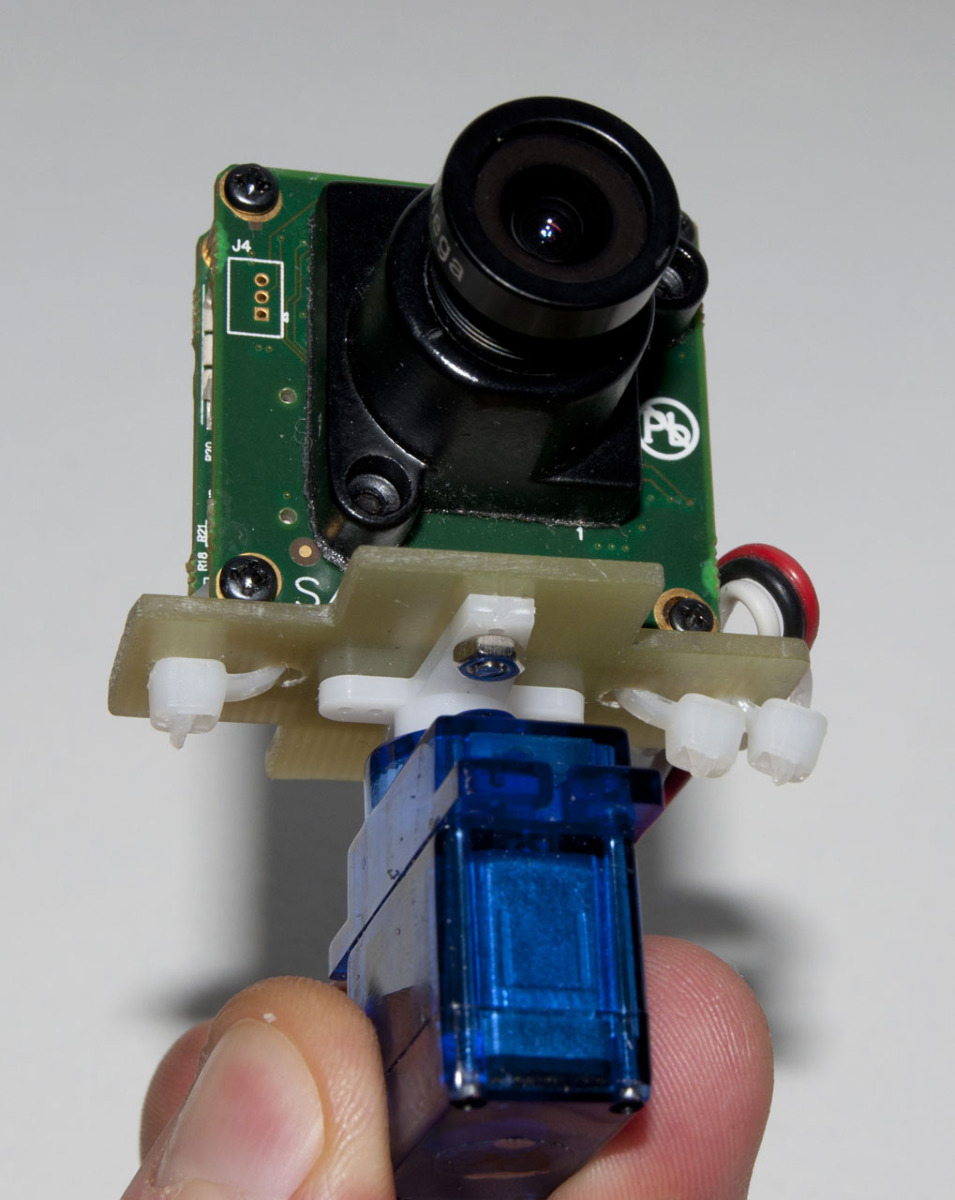

Camera: DX201 with HXT900 pan or GoPro Hero HD with Hitec HS-77BB pan
Telemetry transceiver: Xbee Pro 2.5 series 50mW with 1/4-lamda whip
Video TX: Lawmate 1.3GHz 1W video transmitter with a custom GP-antenna
SUAV servo distribution box by Thomas Ingebretsen for transparently passing servo signals from RC RX to servos, or receive servo positions in binary format from autopilot

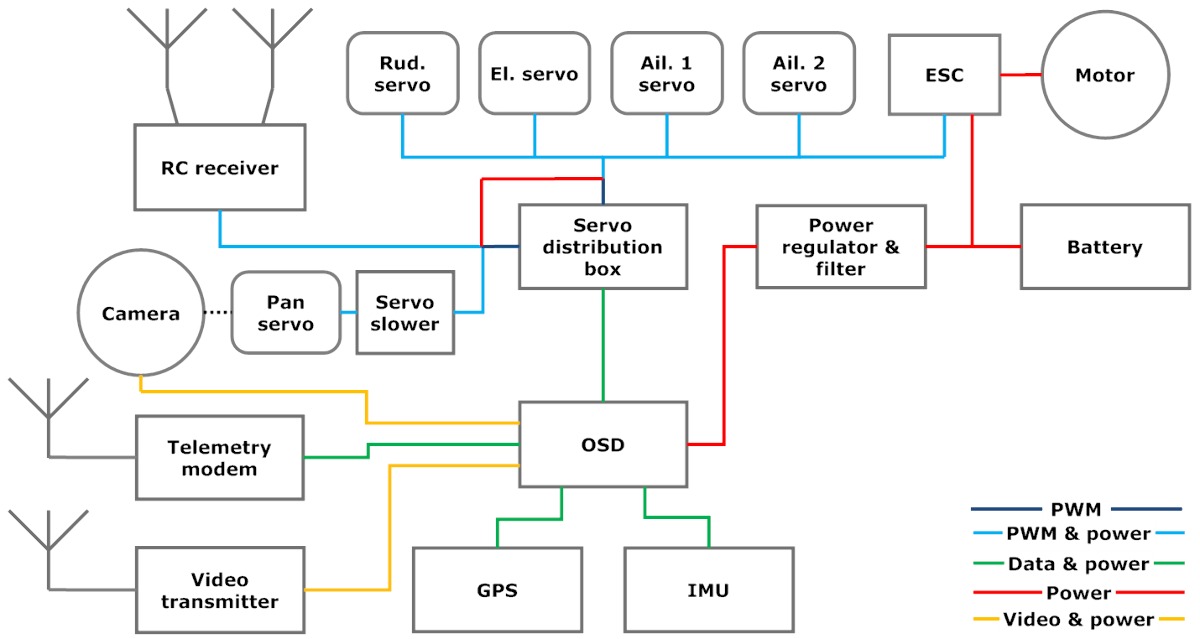

Layout

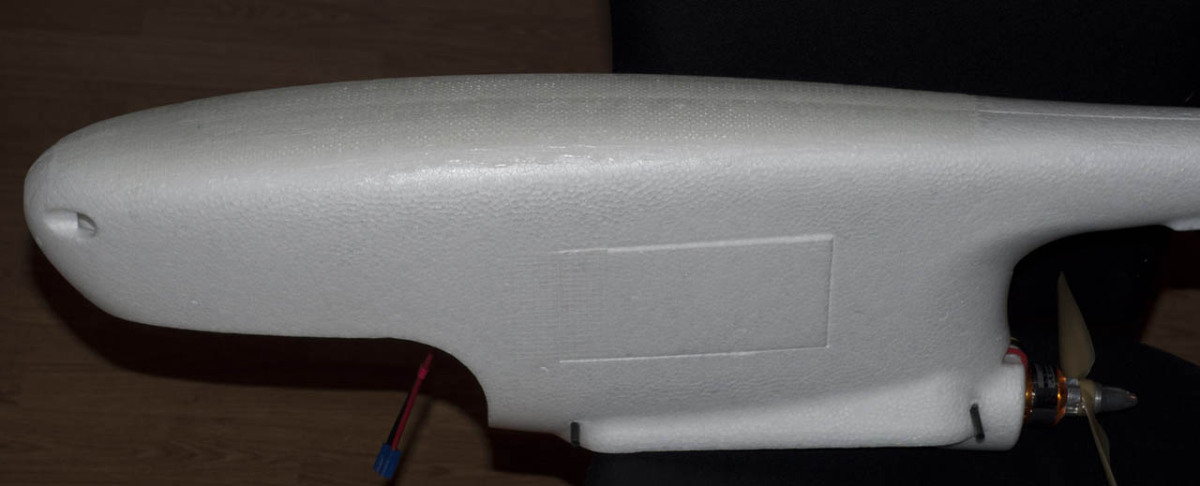

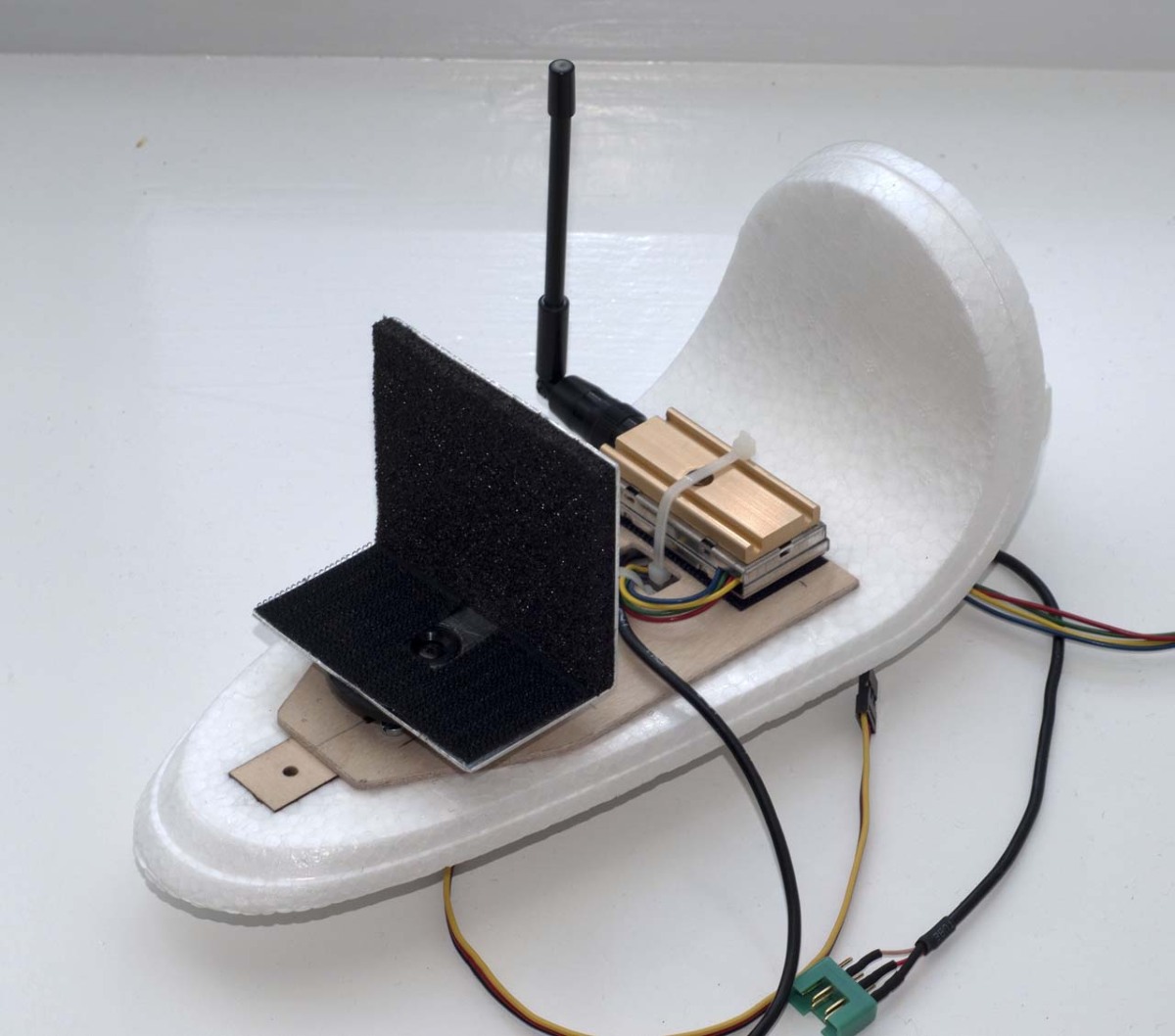

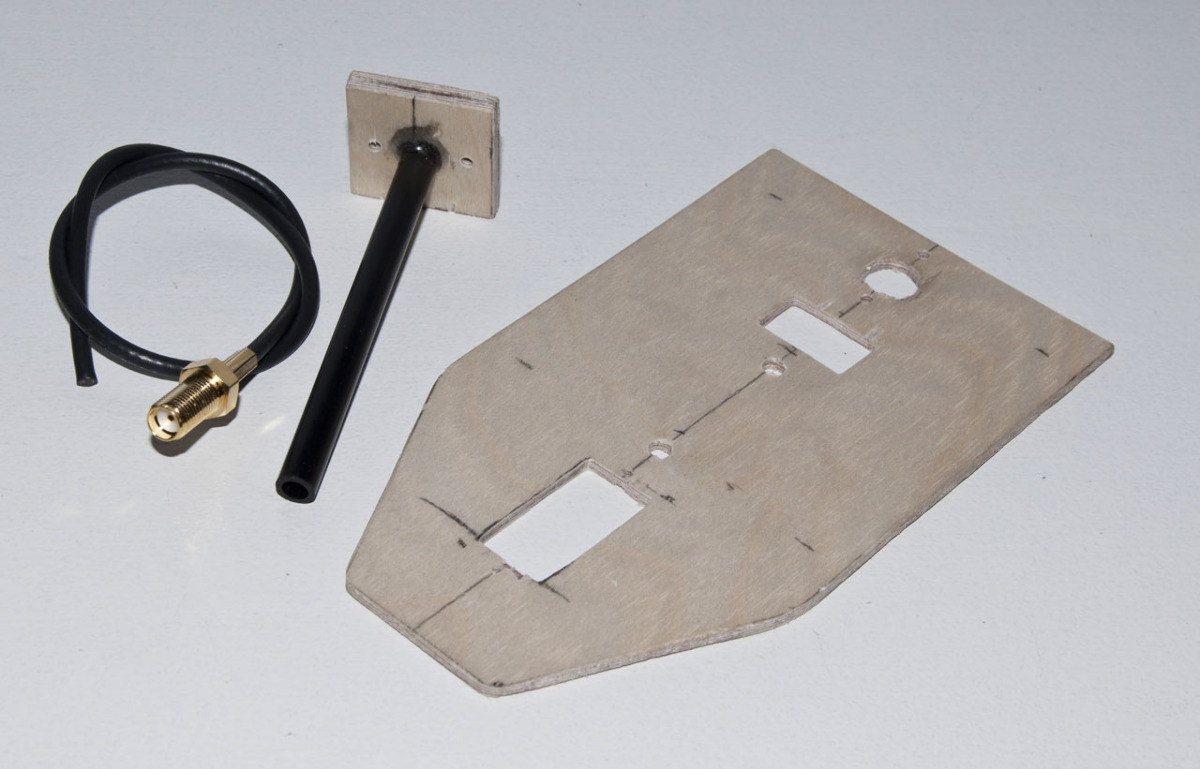

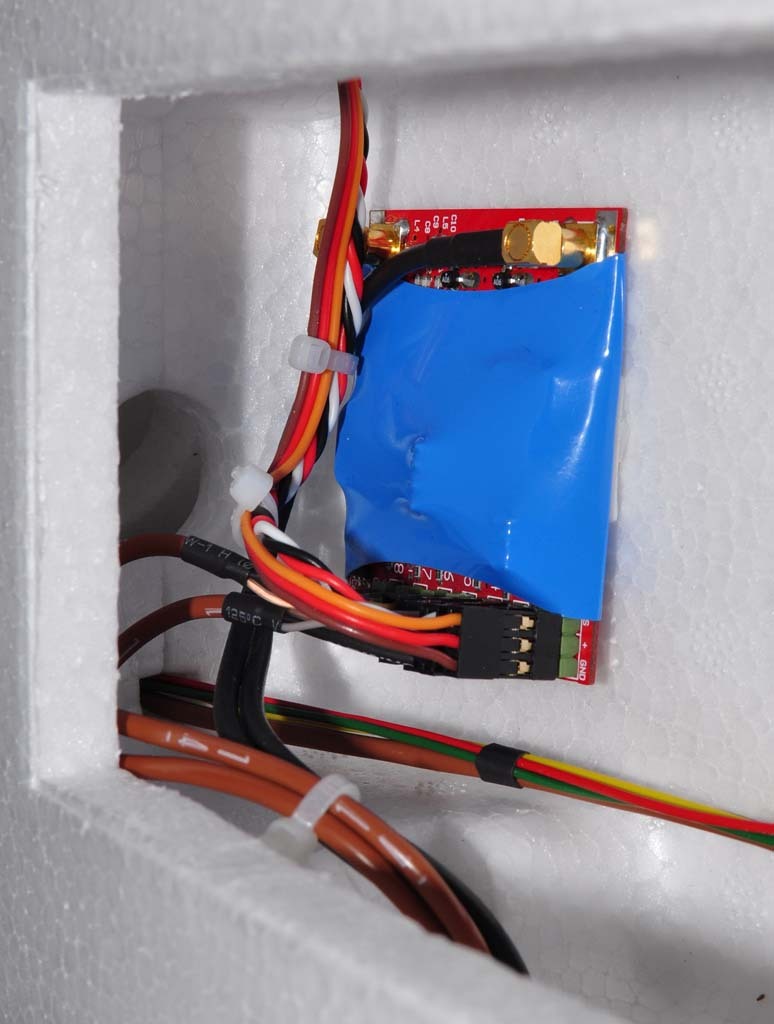

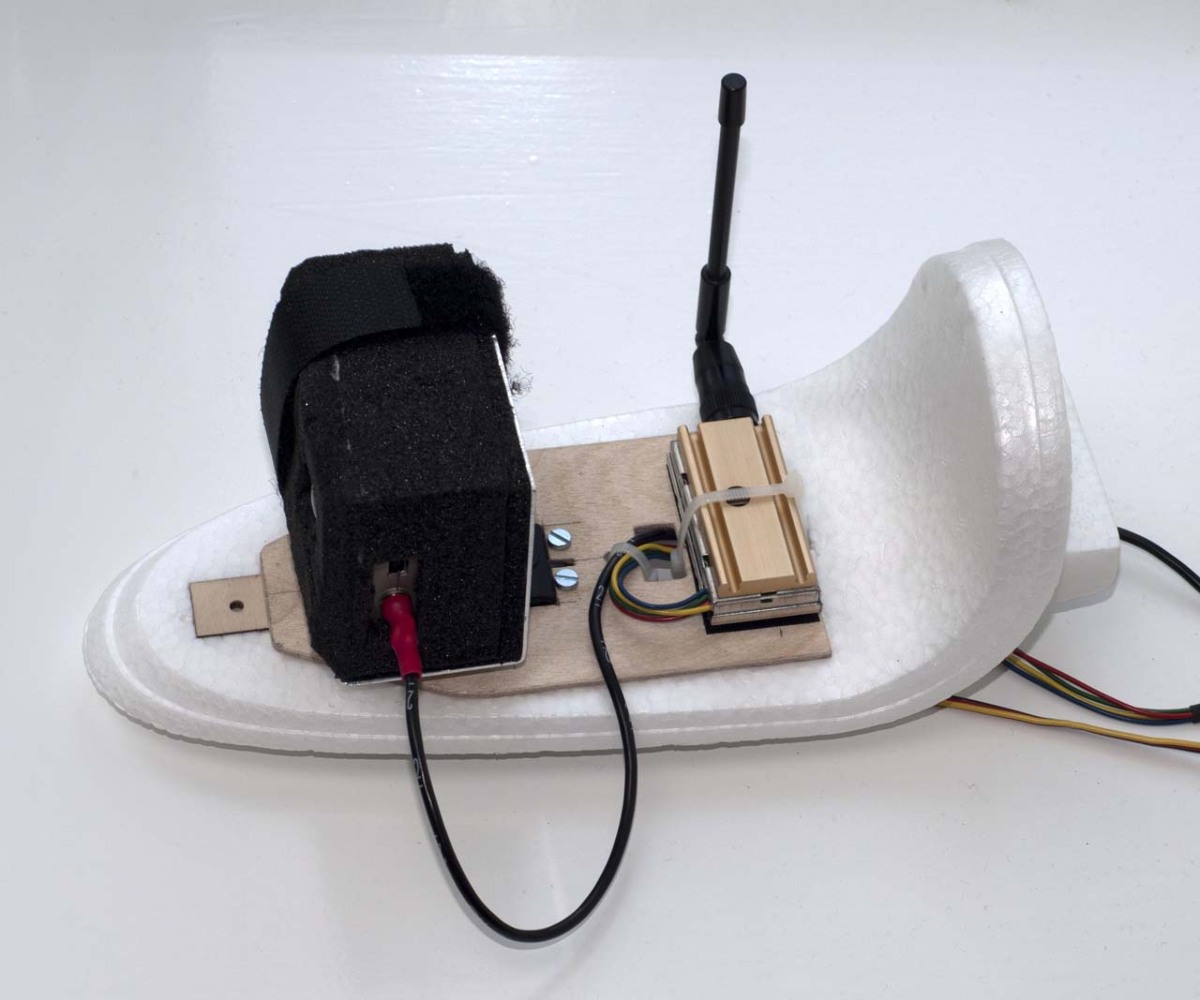

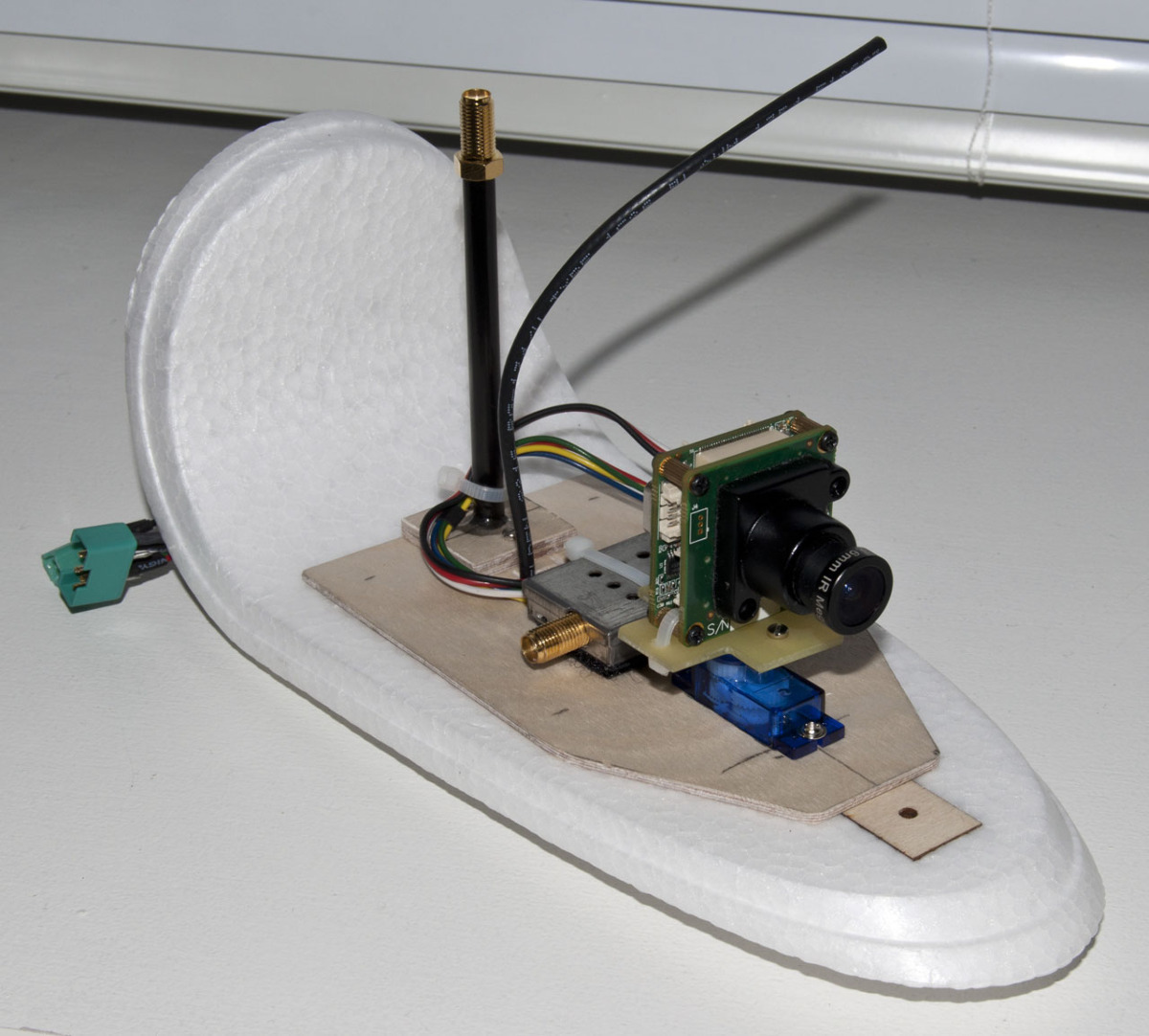

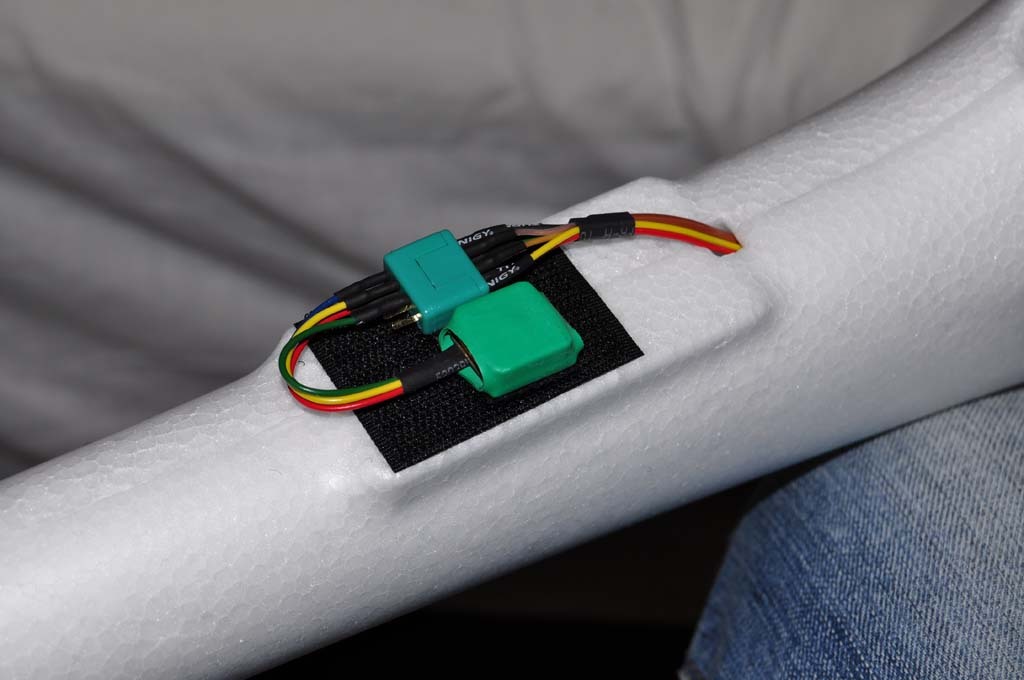

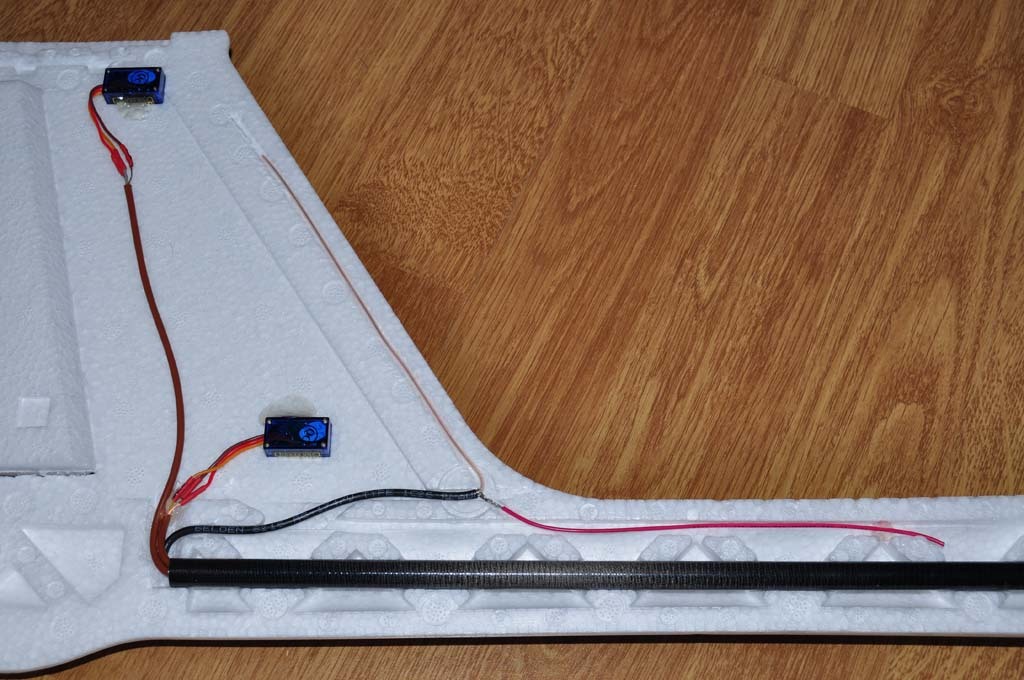

The main concept behind the layout was to get maximum separation between transmitter- and receiver antennas, and avoid problems with noise at (almost) any cost. Let's start at the tail: The vertical UHF dipole is built into the leading edge of the foam on the tail, and the screened servo cables are routed through the carbon fibre boom along with the coax cable for the antenna. The GPS is located on the tail boom, just behind the motor. Most of the payload gear is located inside the lid on the side of the body, and the telemetry transceiver is located just in front of the wing span. On the nose, we will find the video transmitter along with the camera.

Building and installation of permanent gear

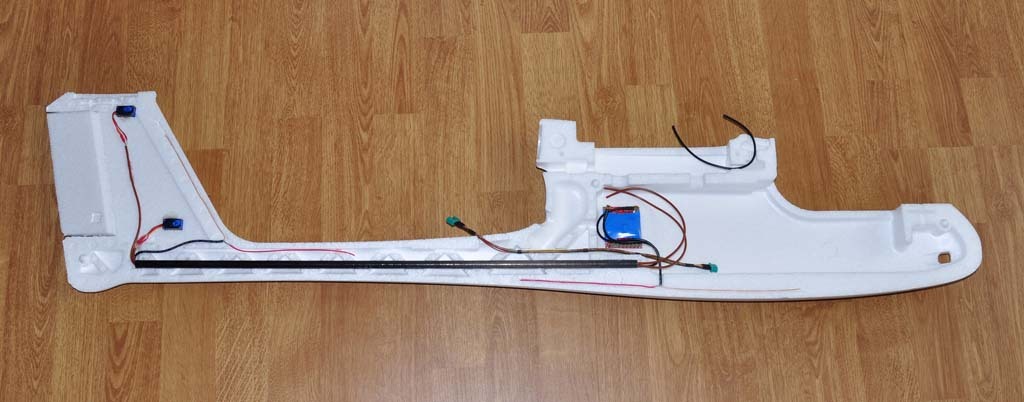

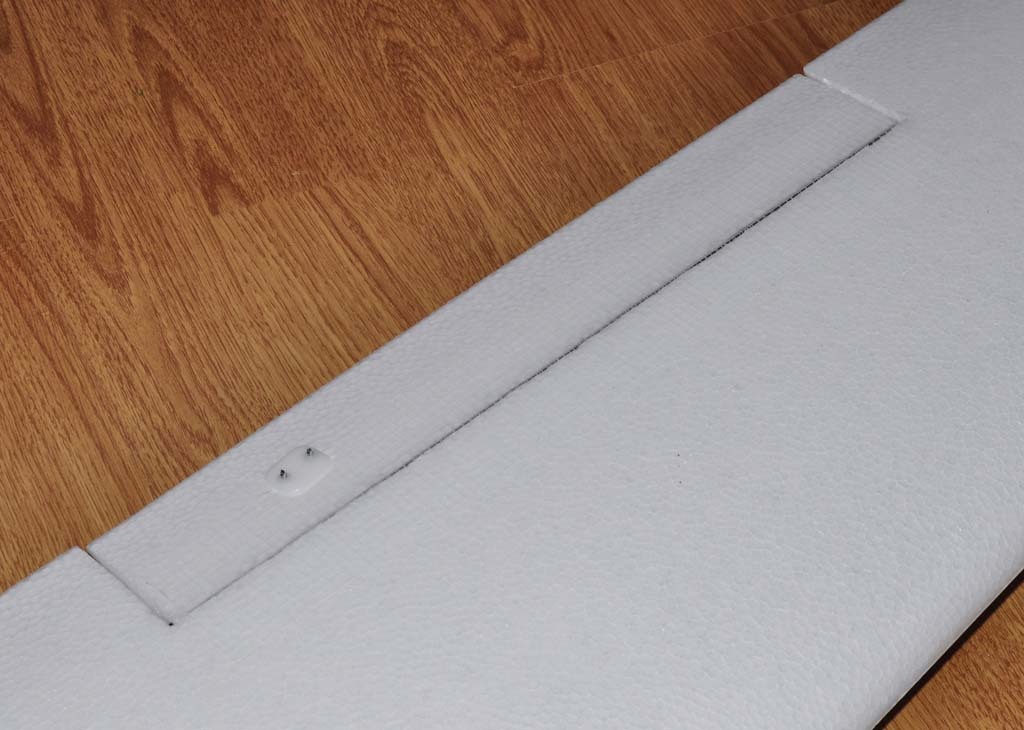

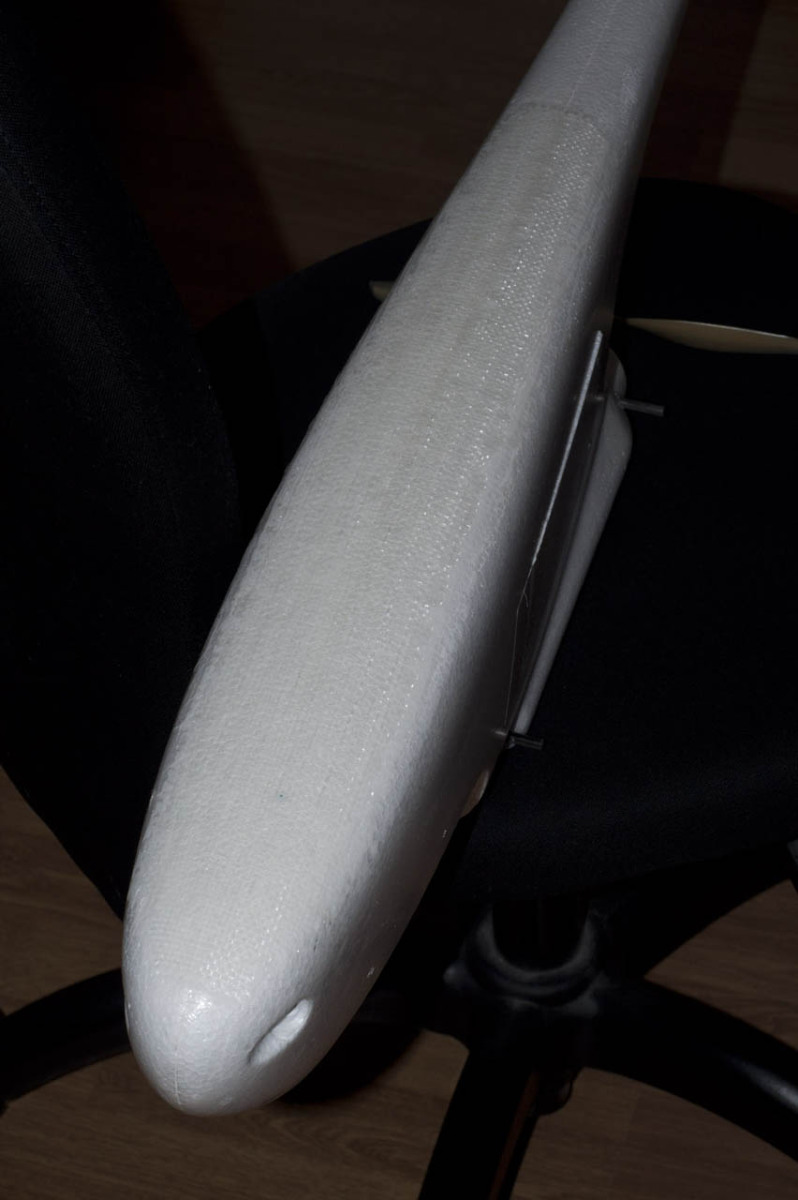

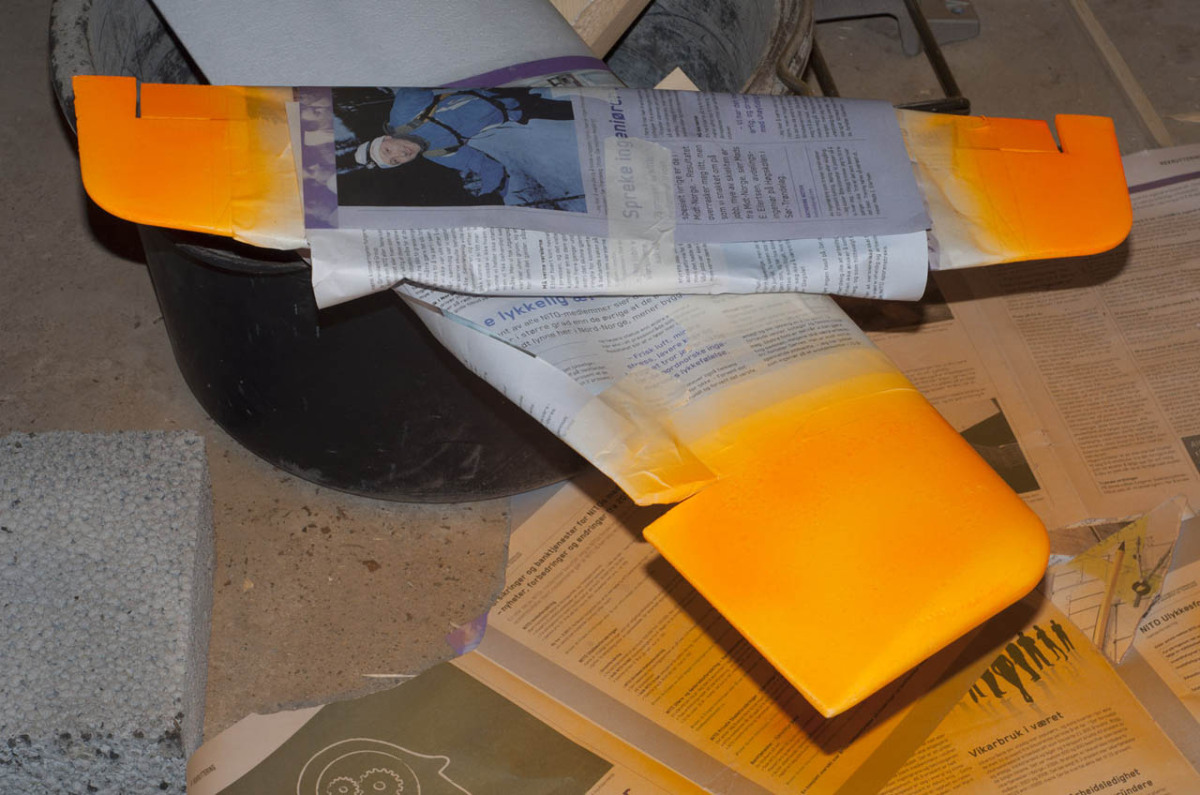

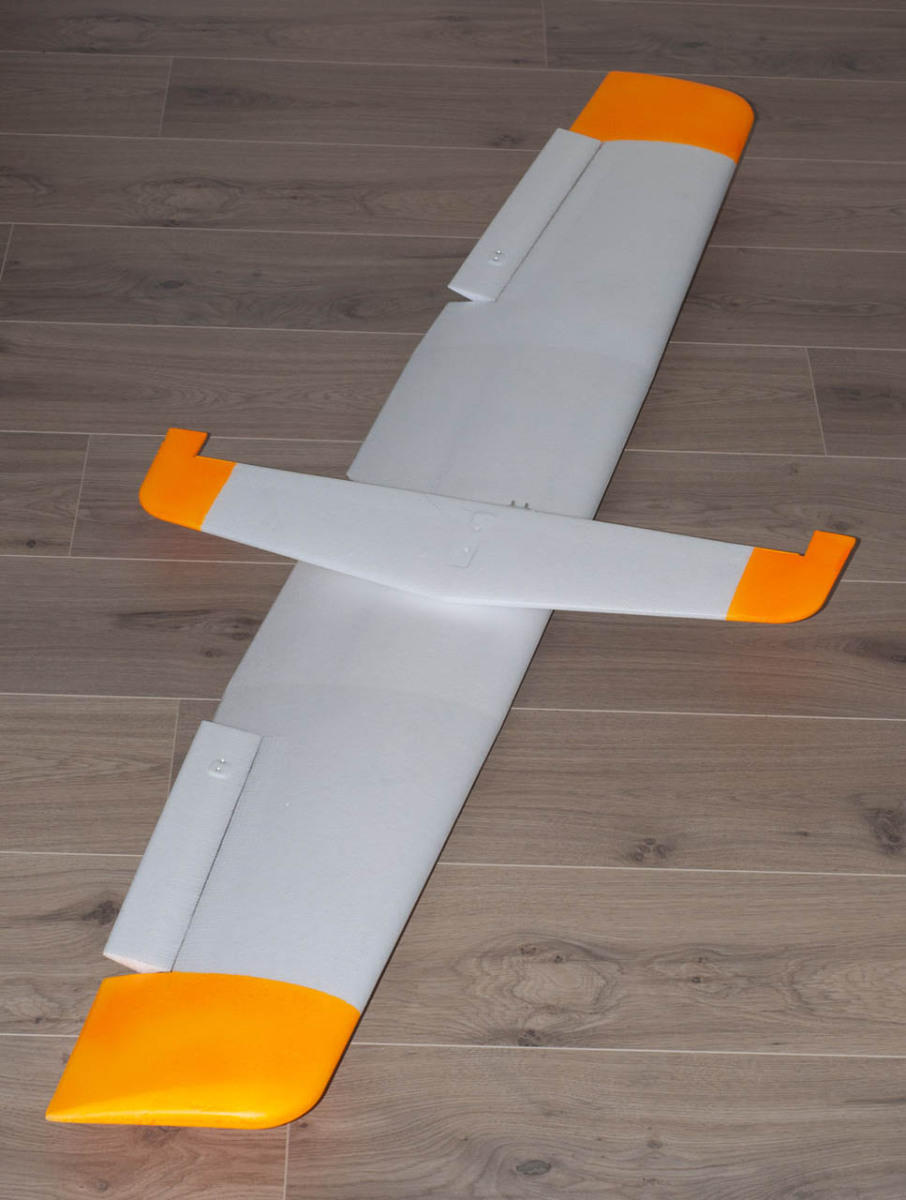

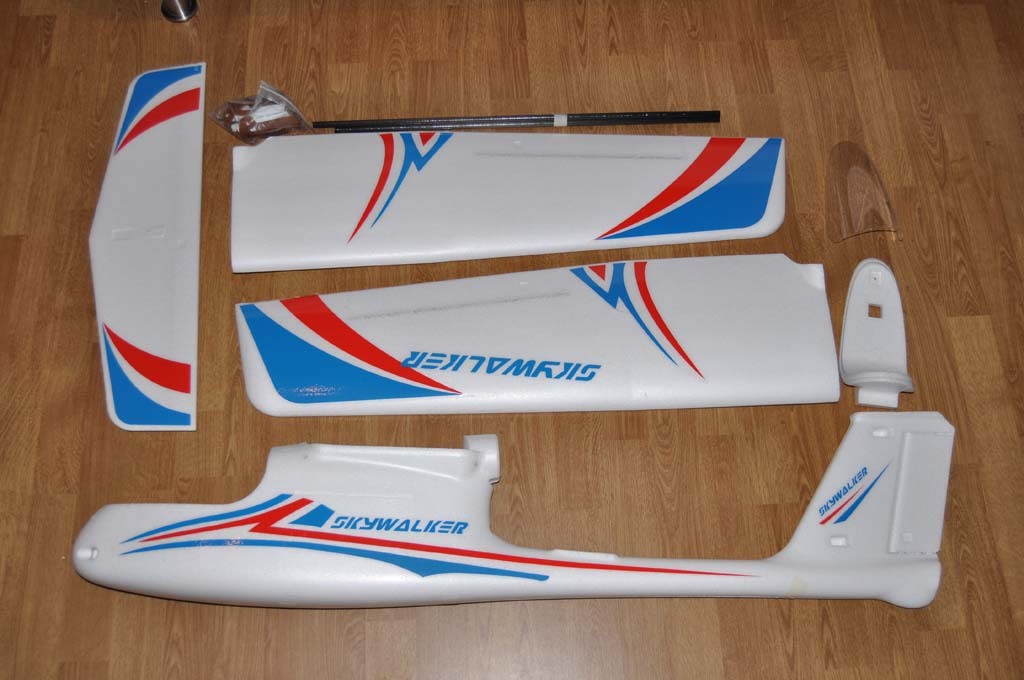

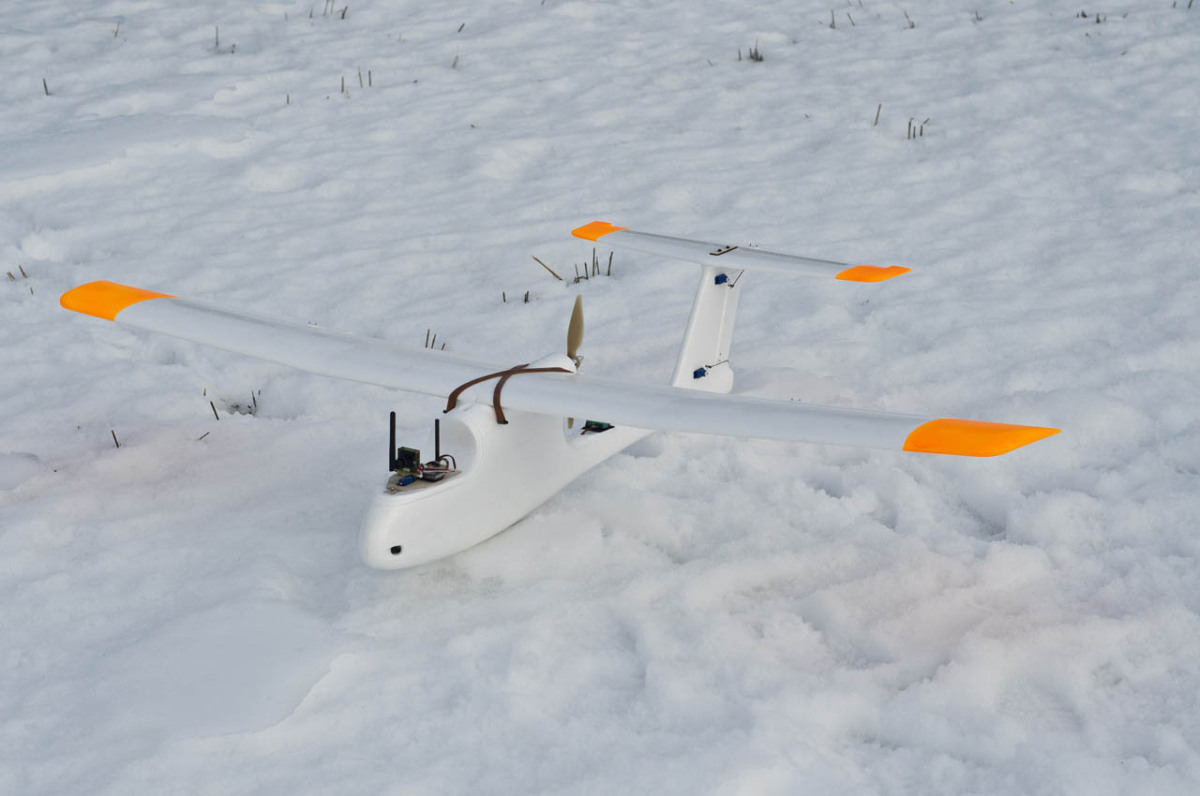

The first thing I did was to remove the 80's-style stickers with the help of a hot air gun. All control surfaces was cut out and hinged with a very strong fibre-tape from both sides. This solution was more robust and flexible than the stock foam hinges, and removed a lot of stress on the servos. Two 433MHz dipoles was integrated into the body, with good difference in polarization and distance. After a few flights, there were two things that needed to be done. First, the plane needed to be more visible, so I painted the wing tips "fluorescent orange". Secondly, the belly was rapidly becoming scratched up even on soft landings, so I reinforced the belly with a layer of fibreglass.

Payload installation

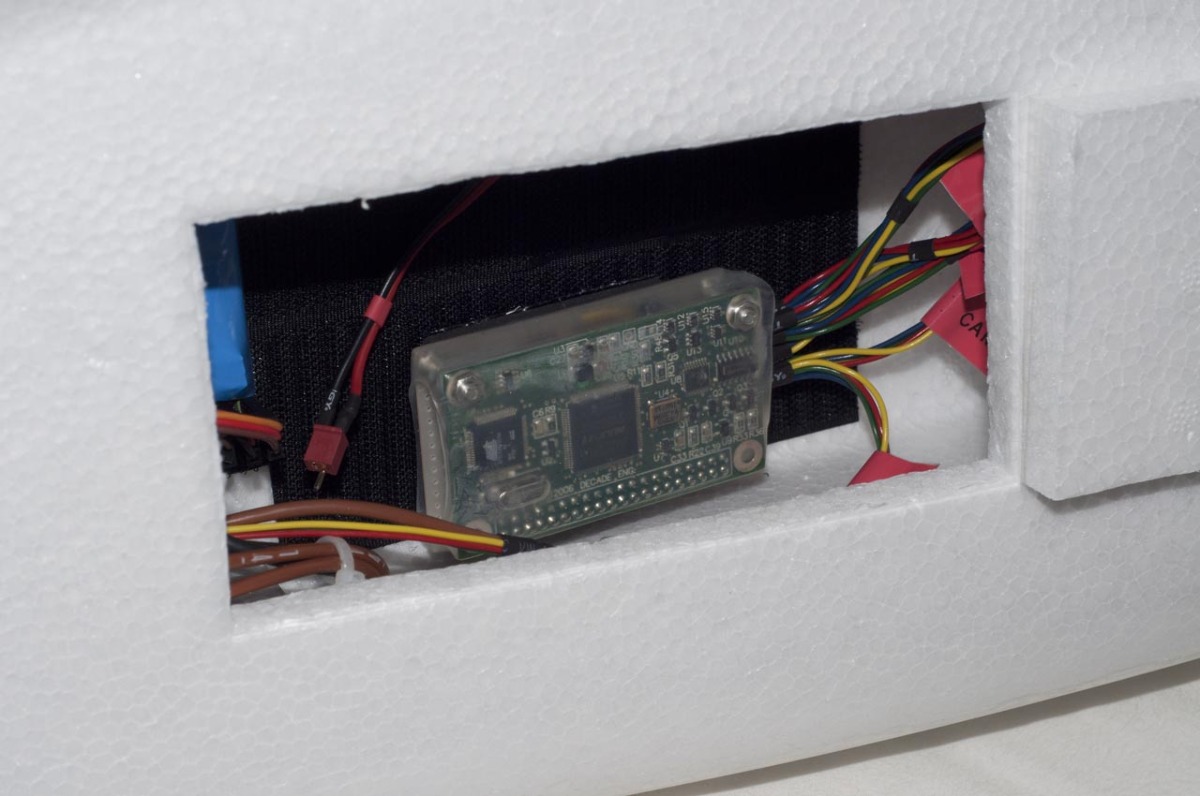

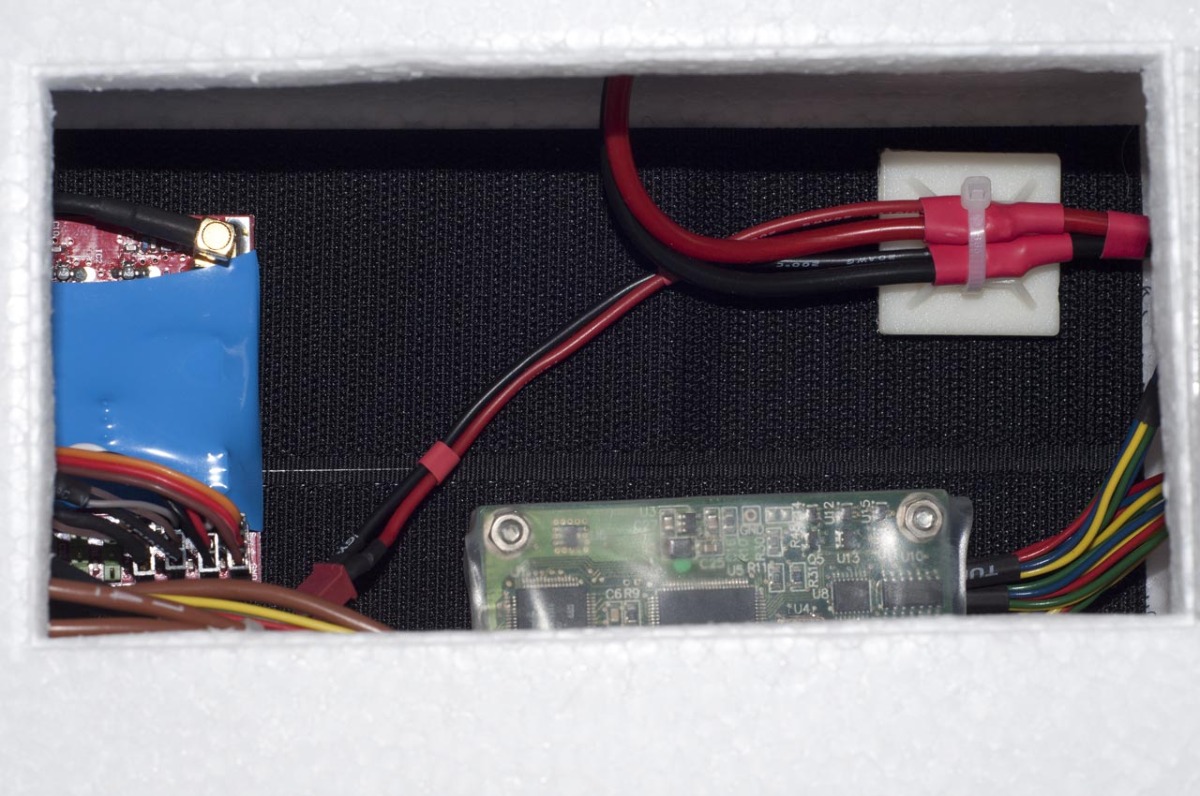

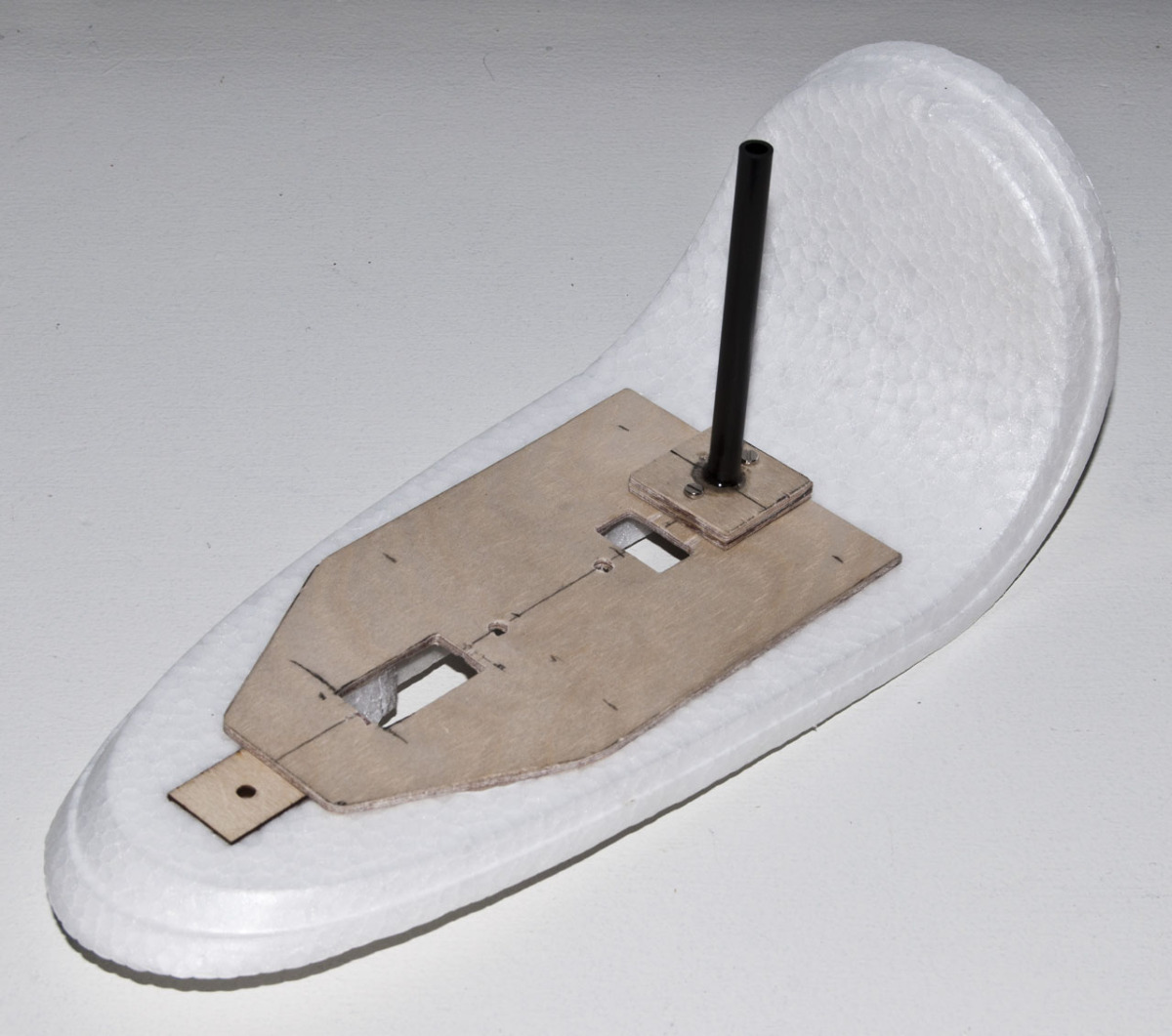

The payload room is completely covered with velcro, so attaching new devices and rearranging is easily done.

Installing a GoPro camera

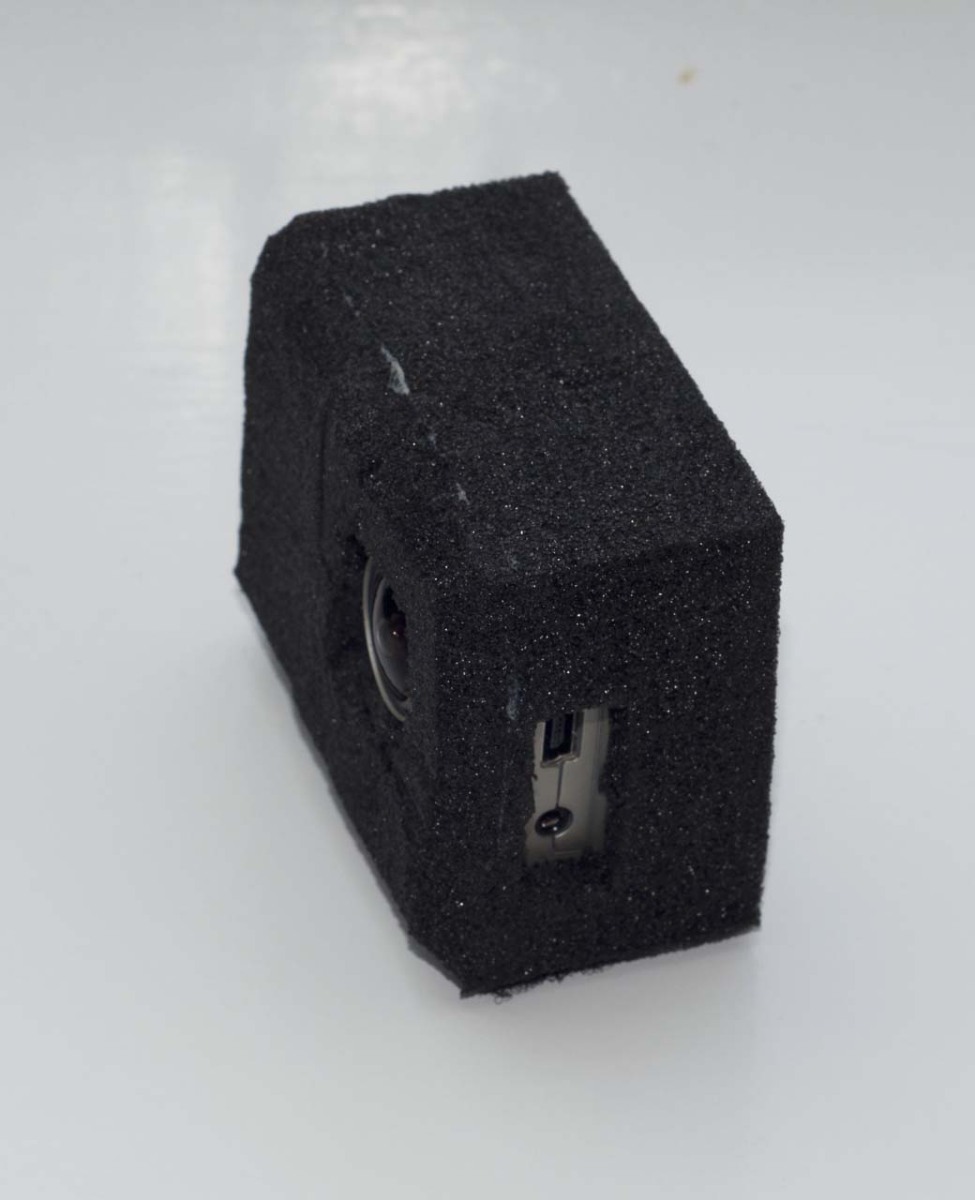

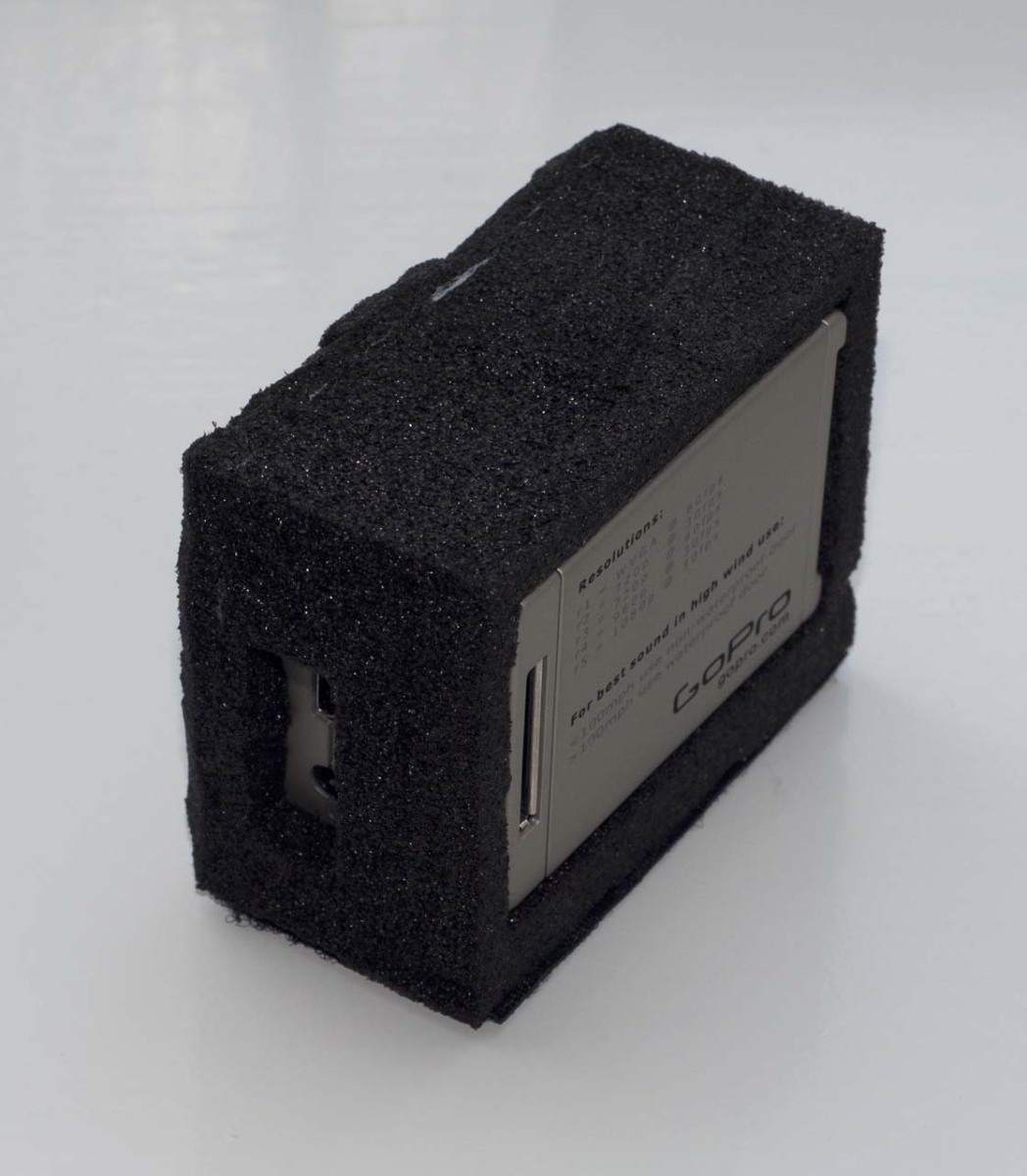

I recently upgraded the pan servo to a HS-77BB, and made a rather ugly looking foam-house to protect the GoPro. Not sure if I will keep this one, but at least the pan works good.
