Home made light switches for a smart home

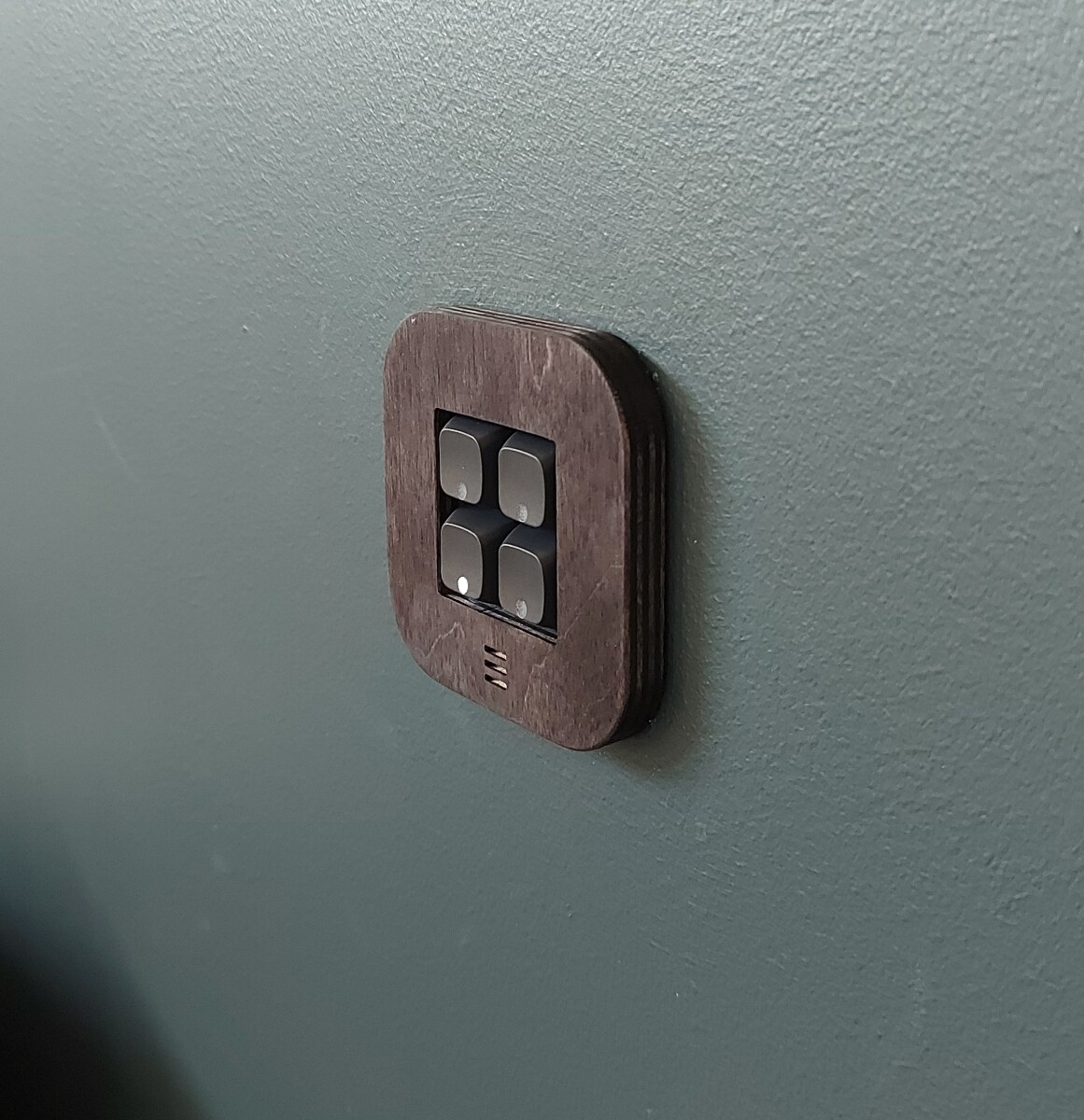

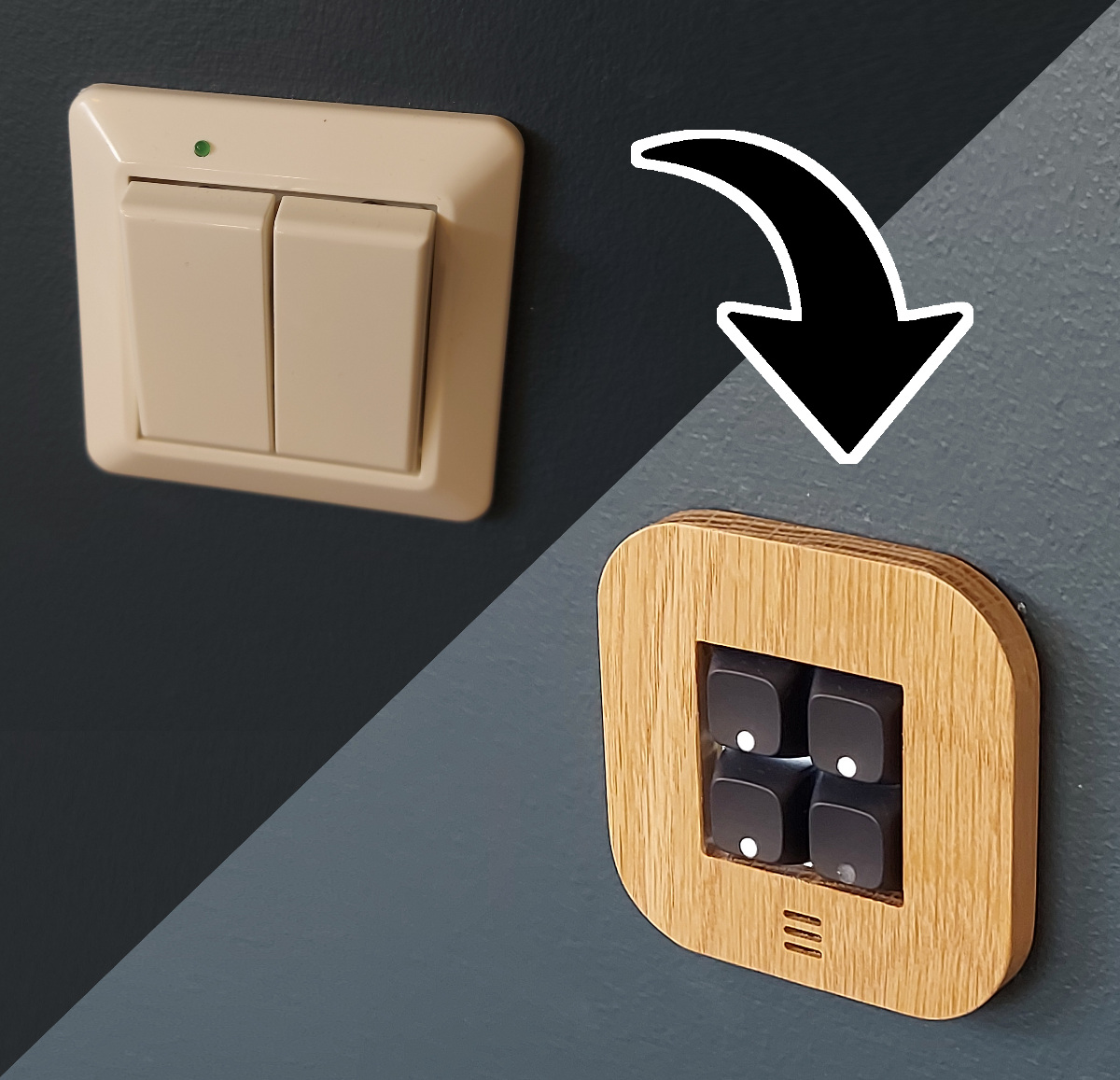

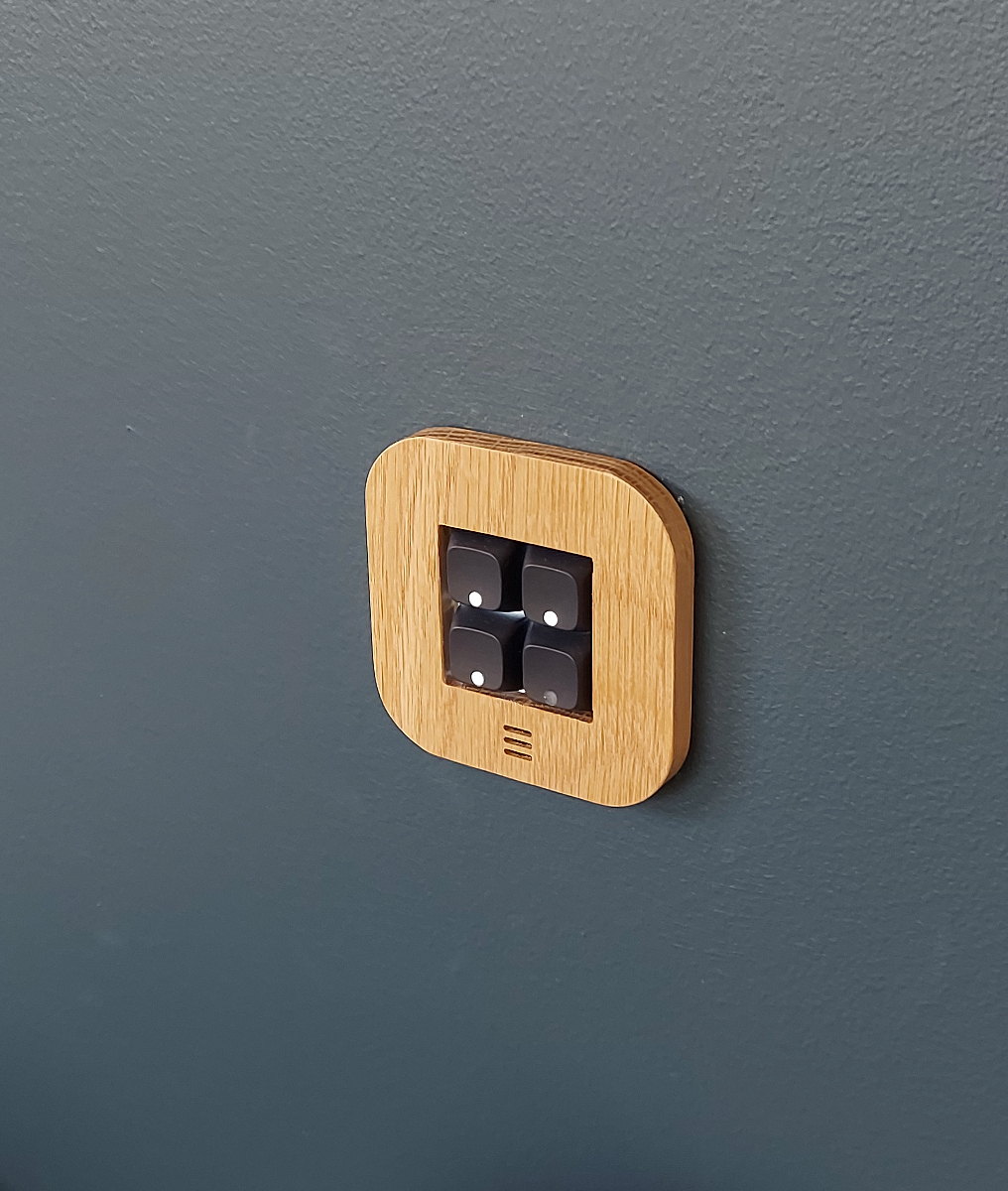

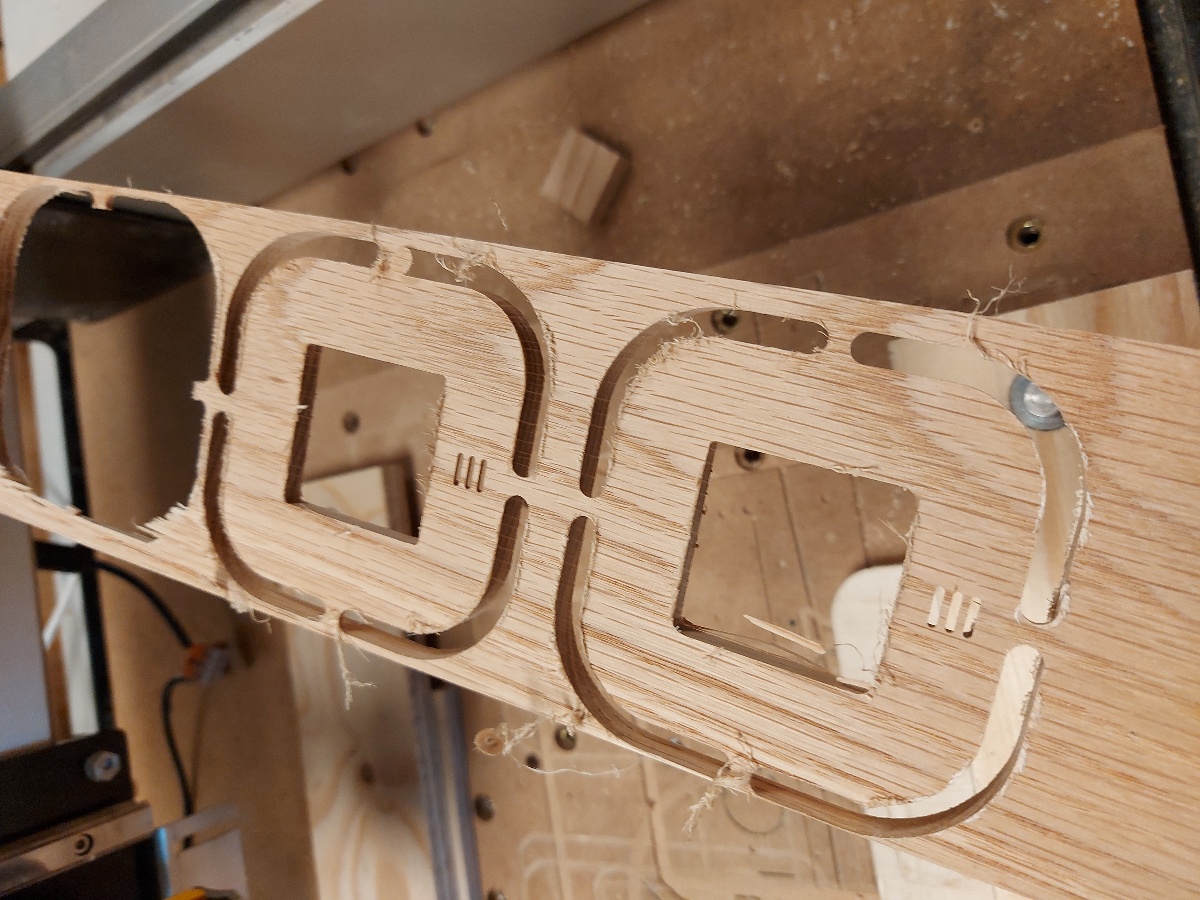

	Summary I got tired of the standard white light switches I had, and made a 4 button "smart" light switch in oak, including an MCU with CAN bus.

Introduction

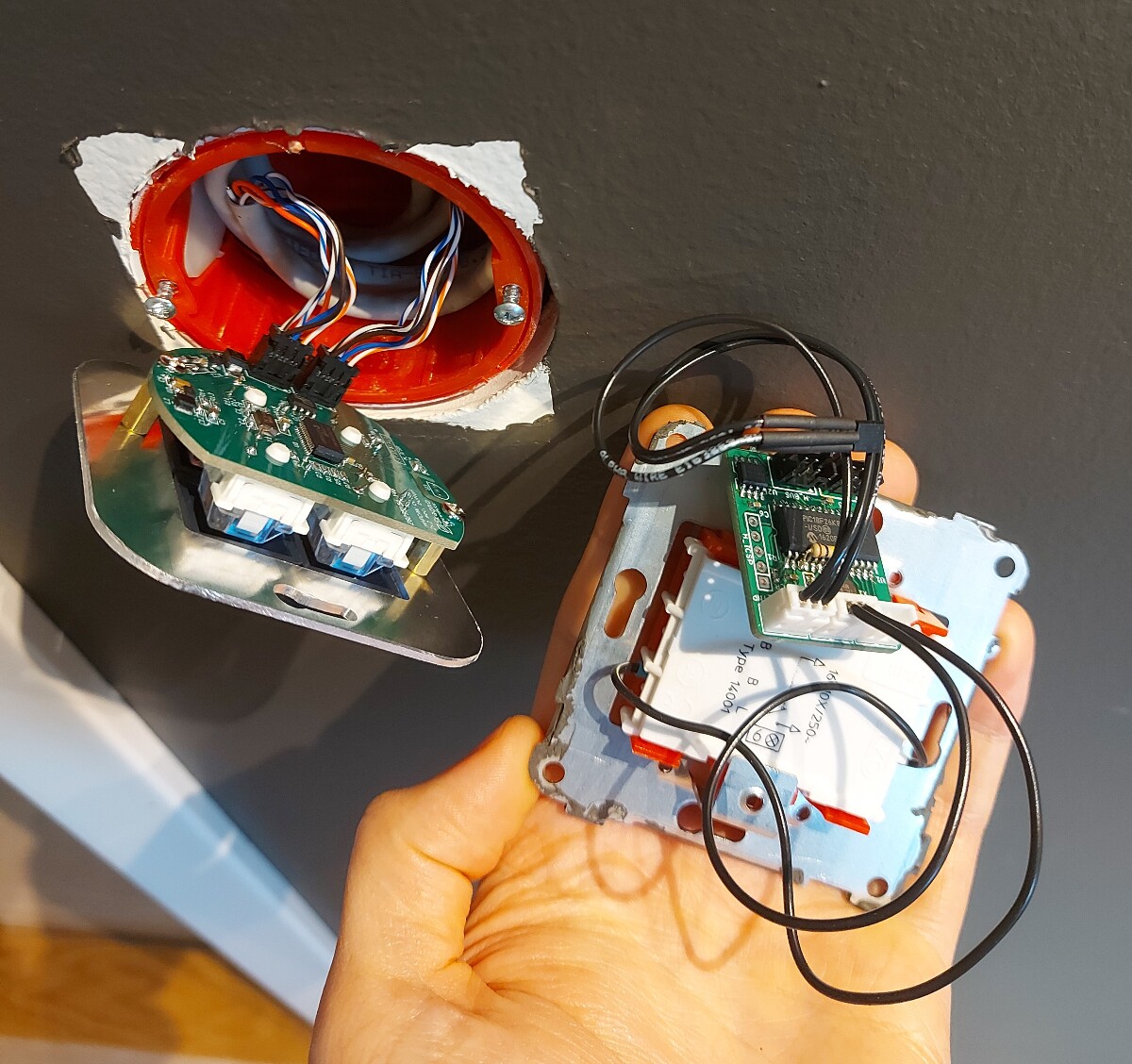

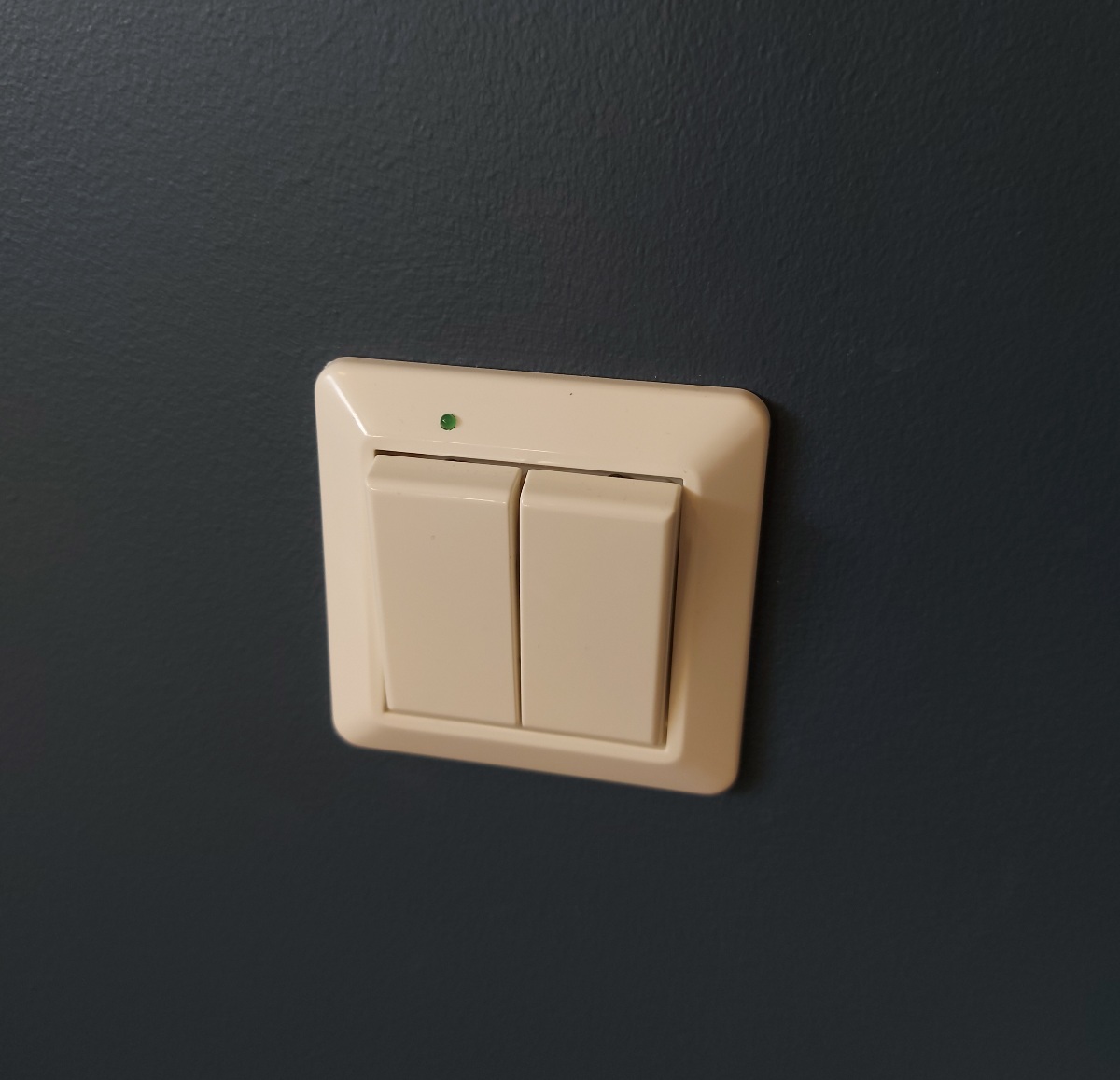

Nearly all homes in Norway uses the white Elko RS16 light switches. They work well, but they are not very well suited for a smart home. They are not made for momentary action by default, so you'll need to insert a stiff spring for the switch to act as a momentary switch. Also, there's no feedback such as LEDs. Finally, you can only have up to three buttons in a frame. Having all my light switches connected to a bus cable with 24 V (SELV) and CAN bus, I'm free to make the light switches myself from a regulatory perspective, so I decided to make a switch module better suited for my use.

Hardware specifications

PIC18F26K80 microcontroller (compatible with HAPCAN)
Four mechanical keyboard switches (CherryMX compatible)
Four LEDs
DS18B20 temperature sensor
Transient protection/filter and DC/DC regulator

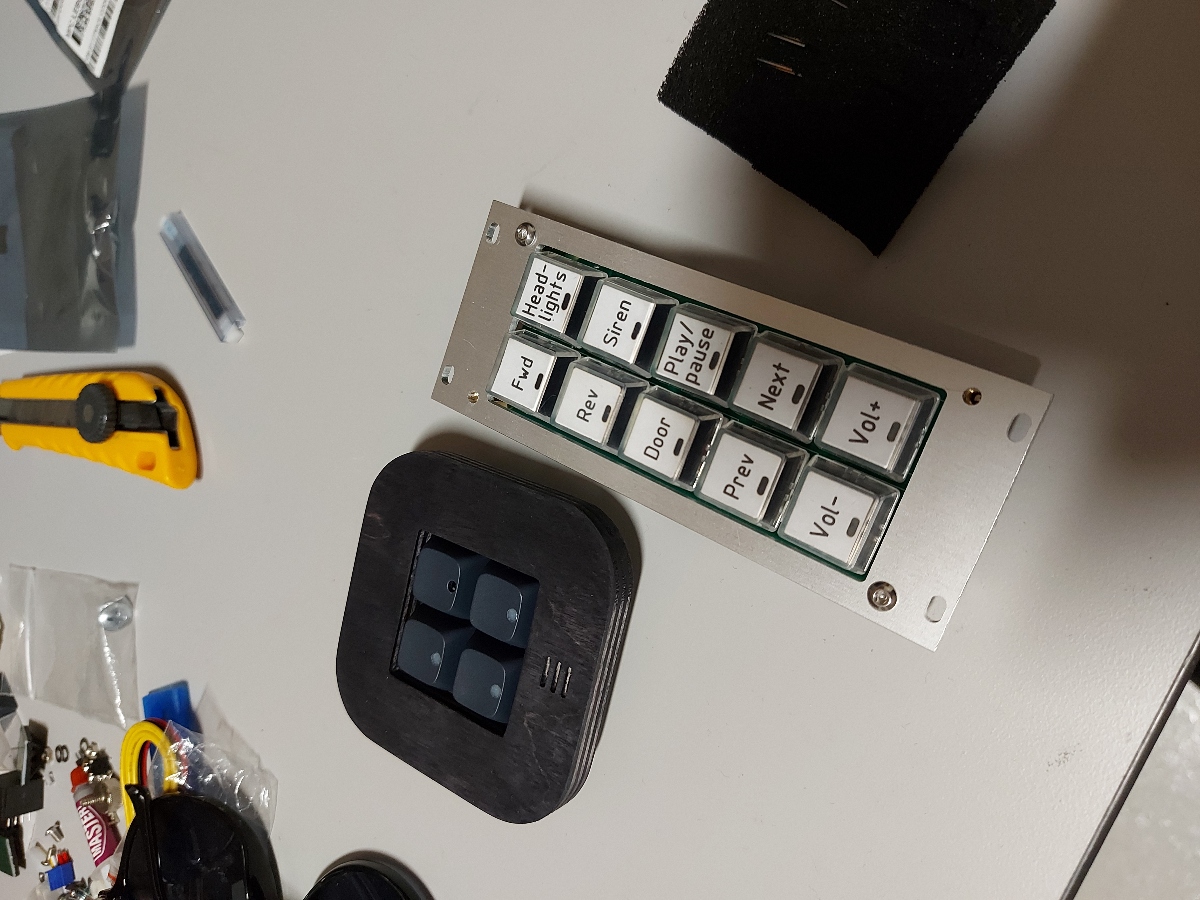

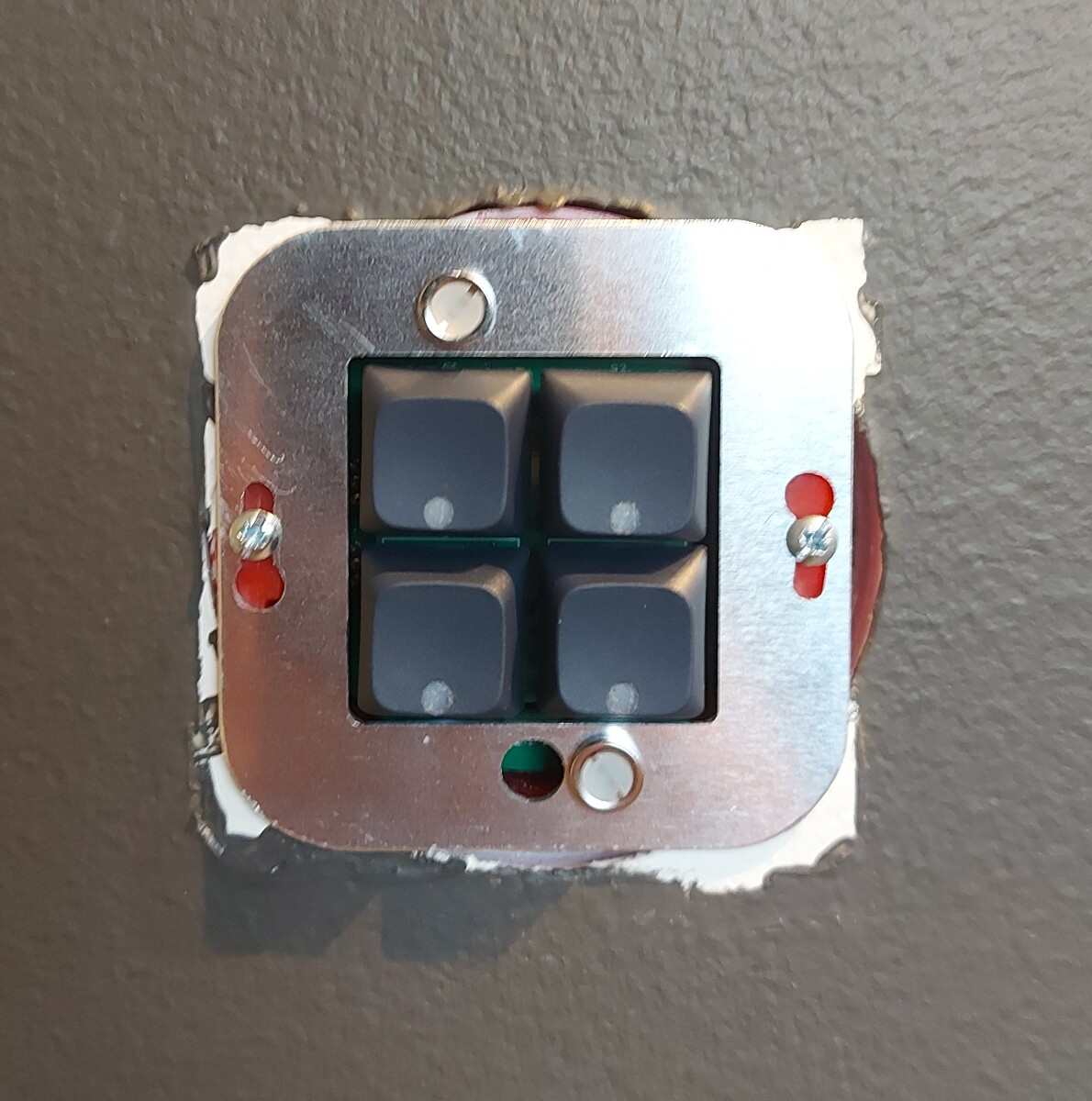

Fits in Elko wall box

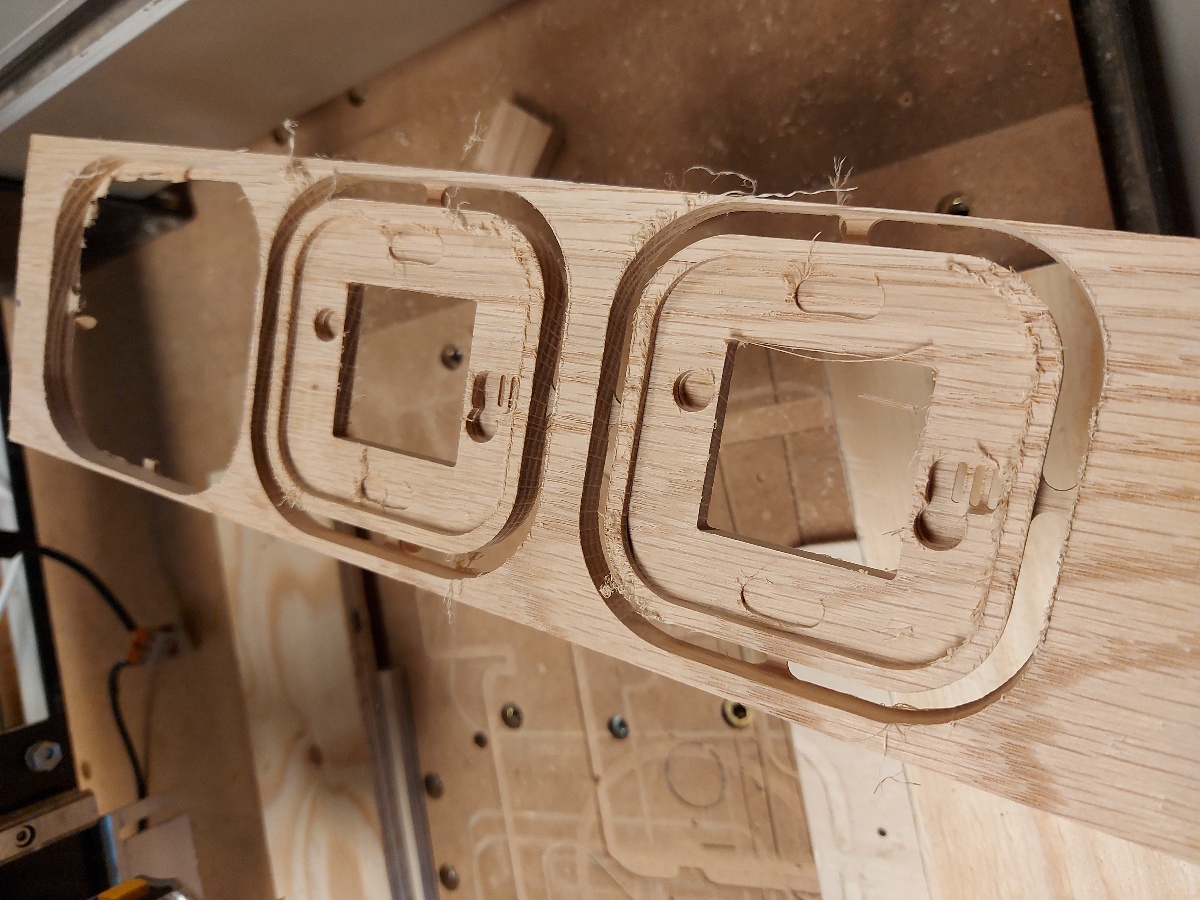

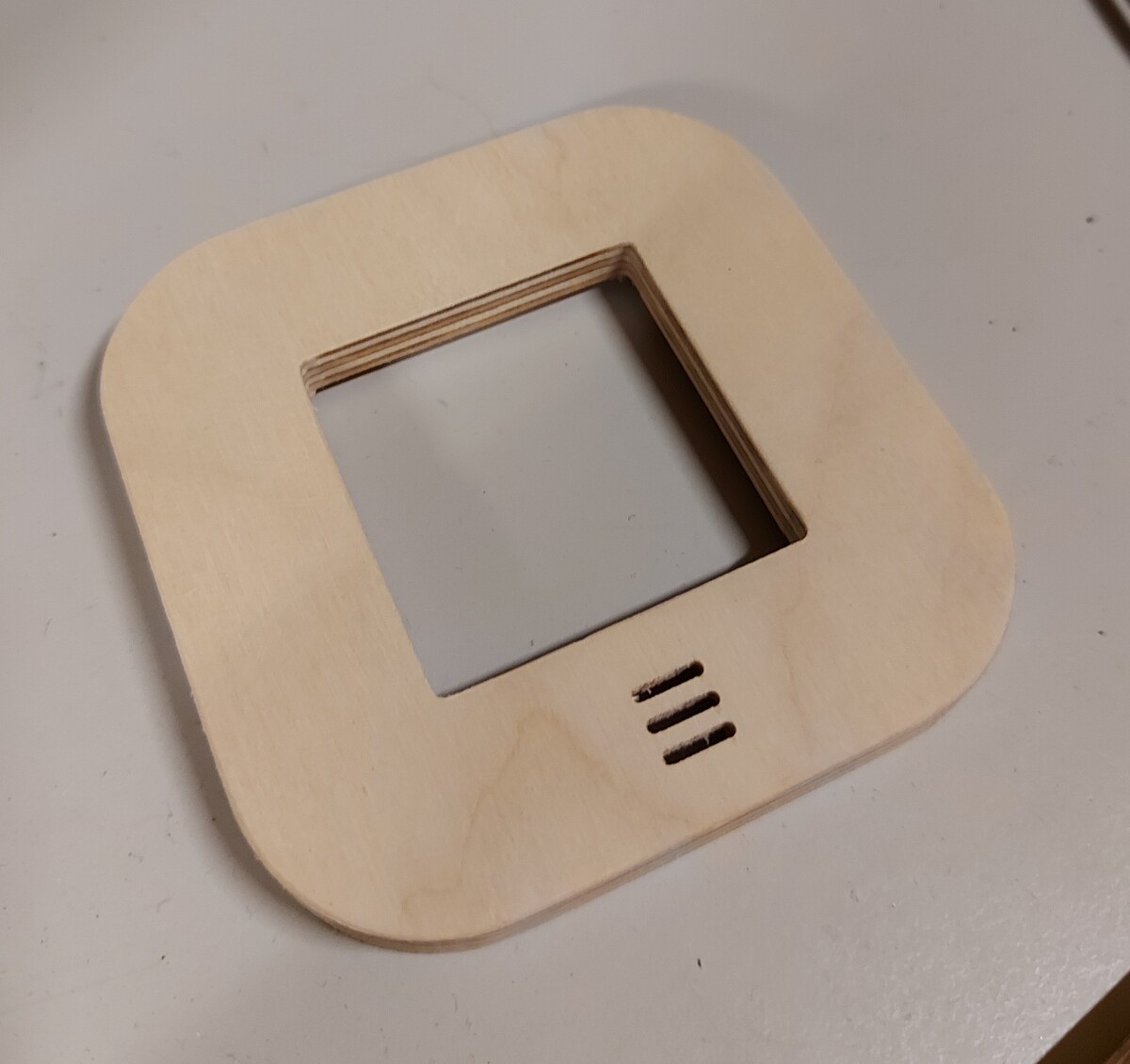

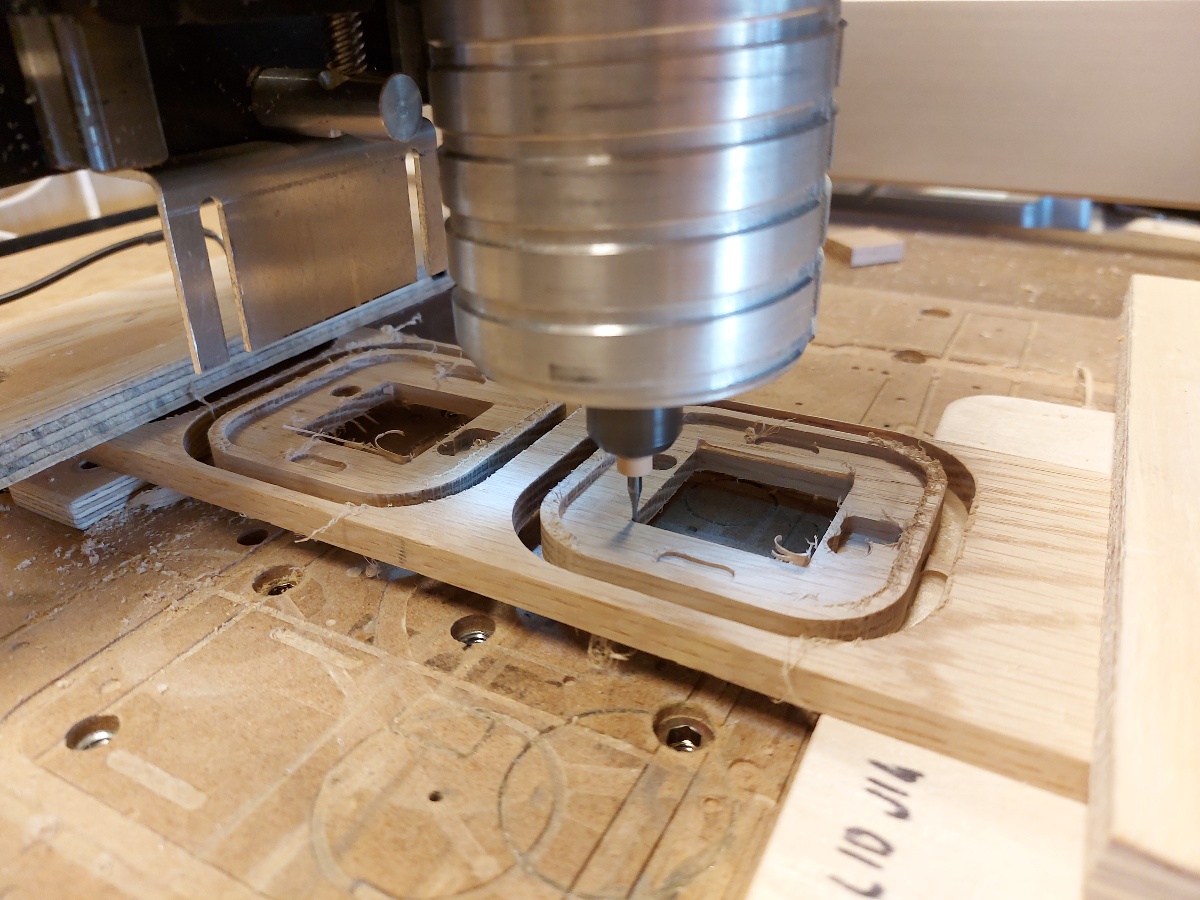

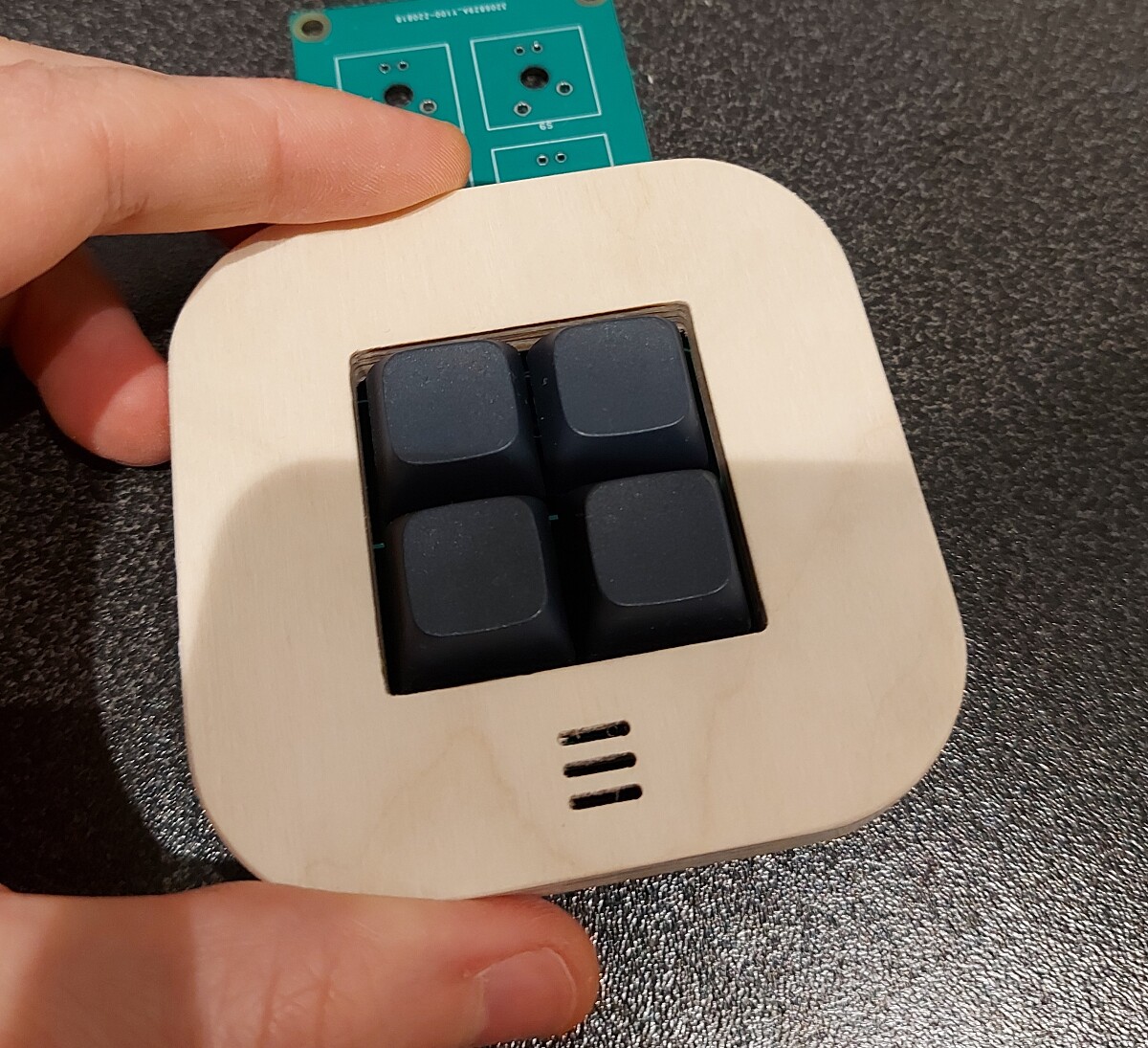

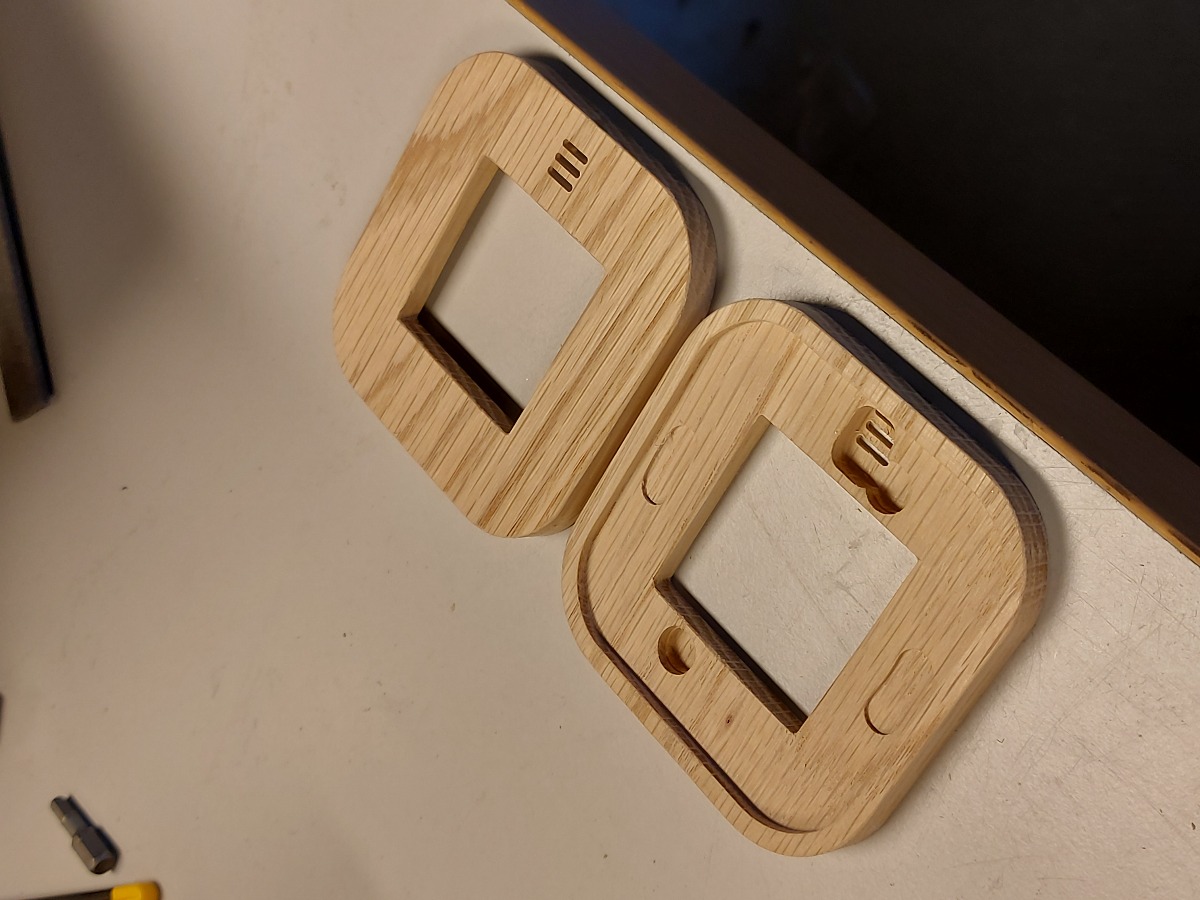

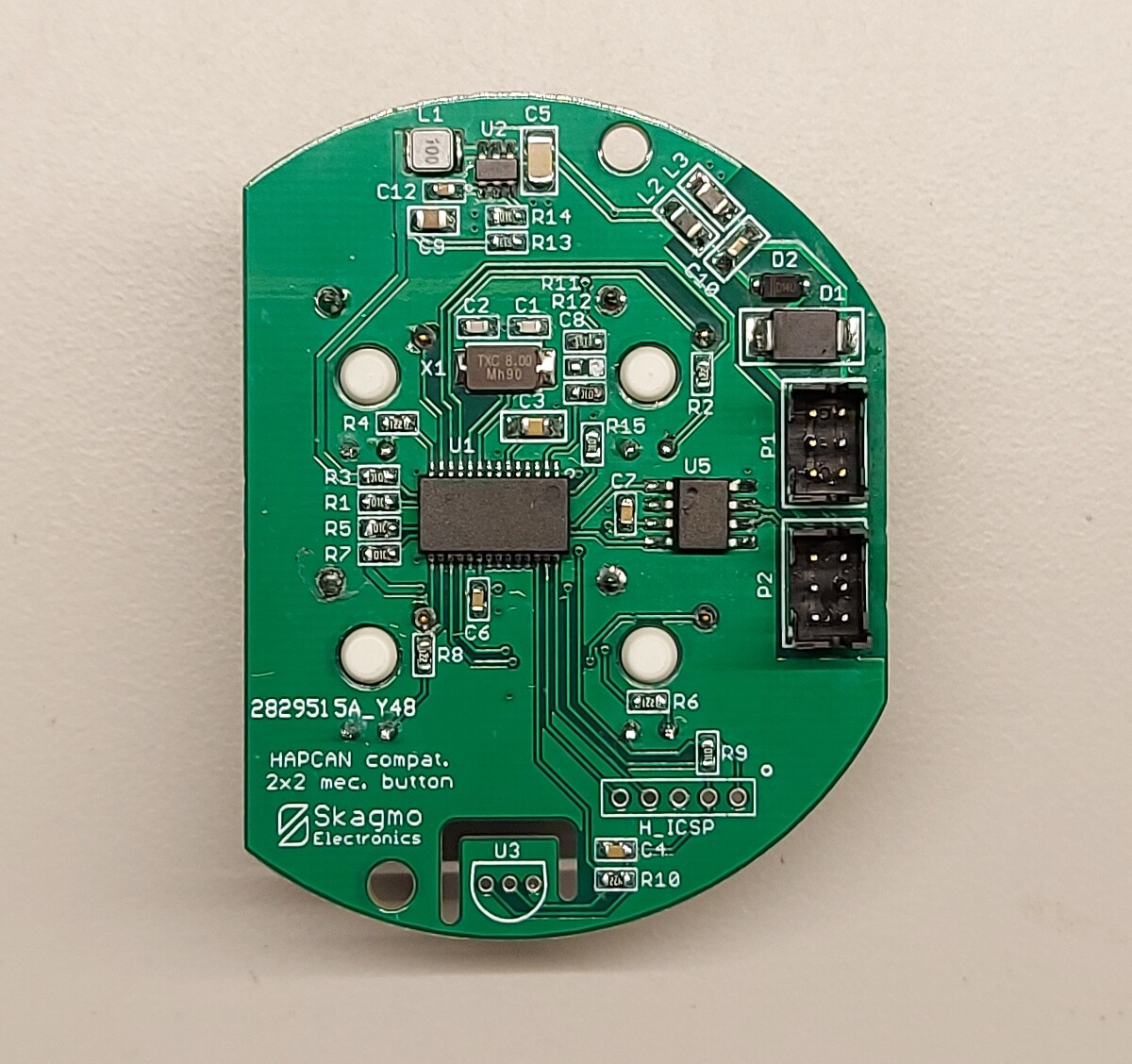

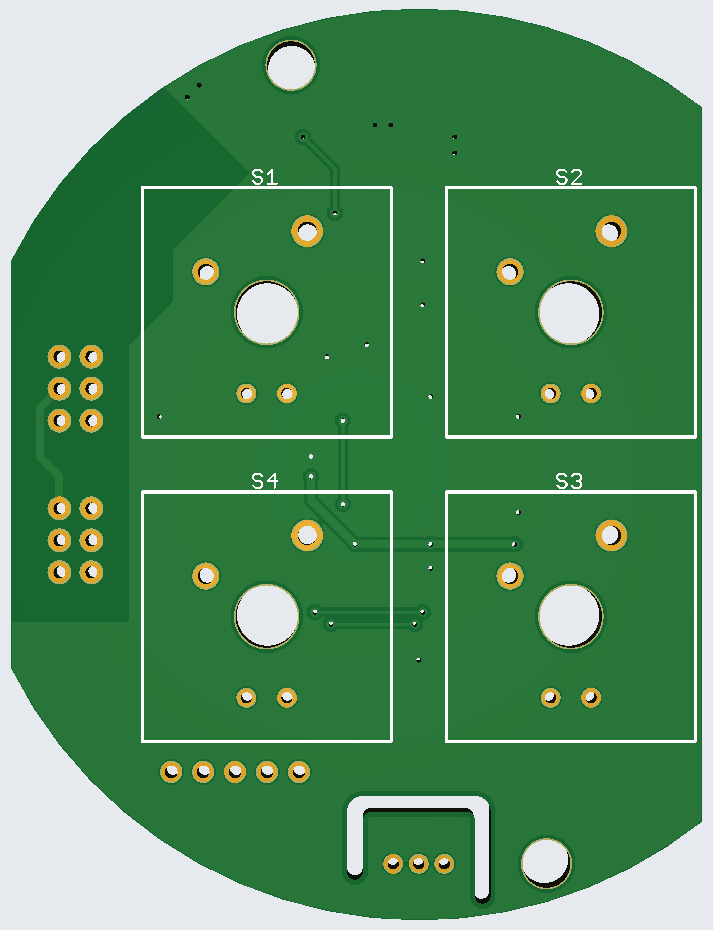

PCB assembly

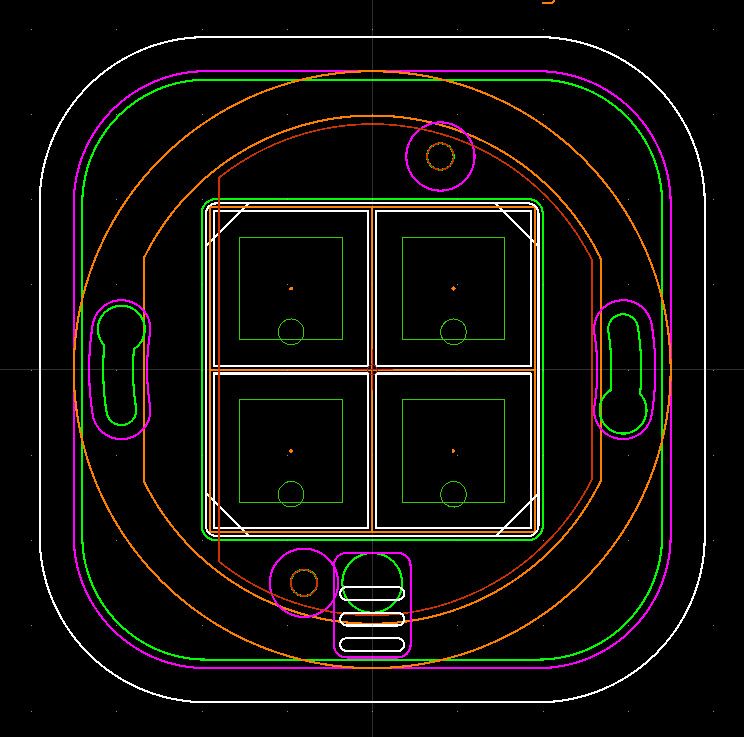

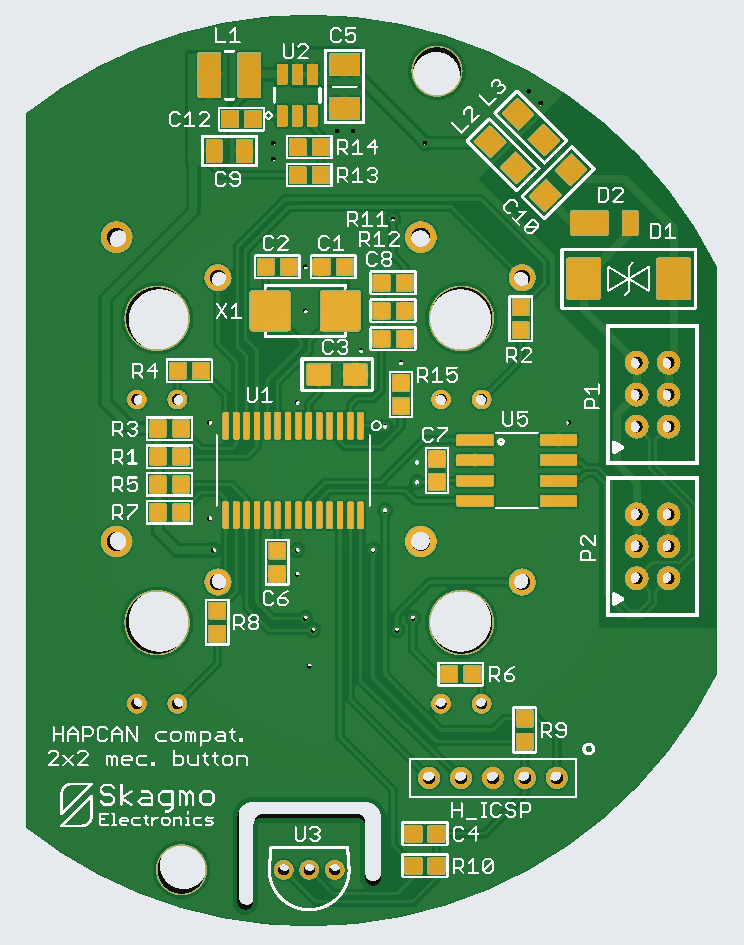

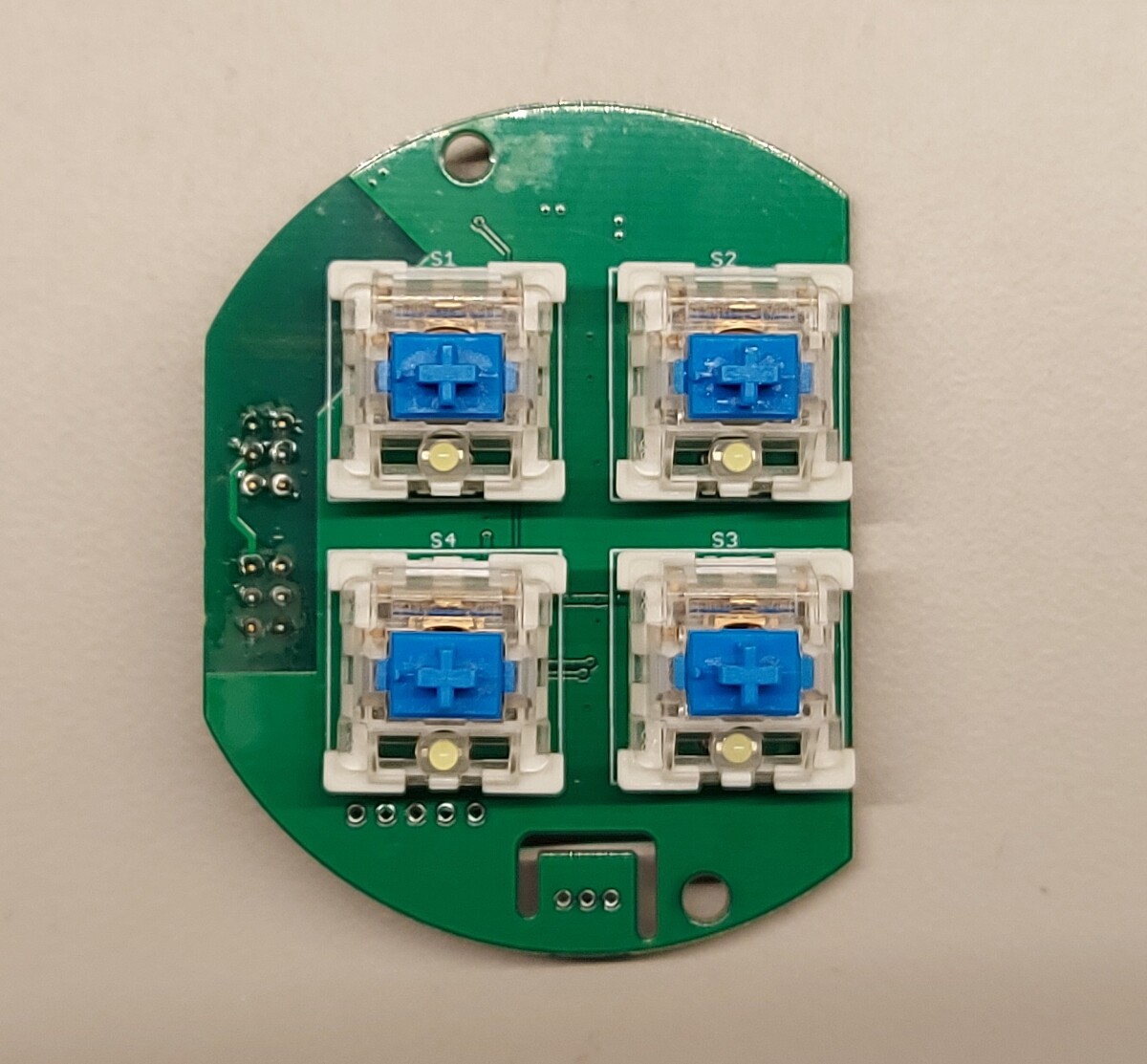

The PCB is made to fit in a standard Elko wall box.

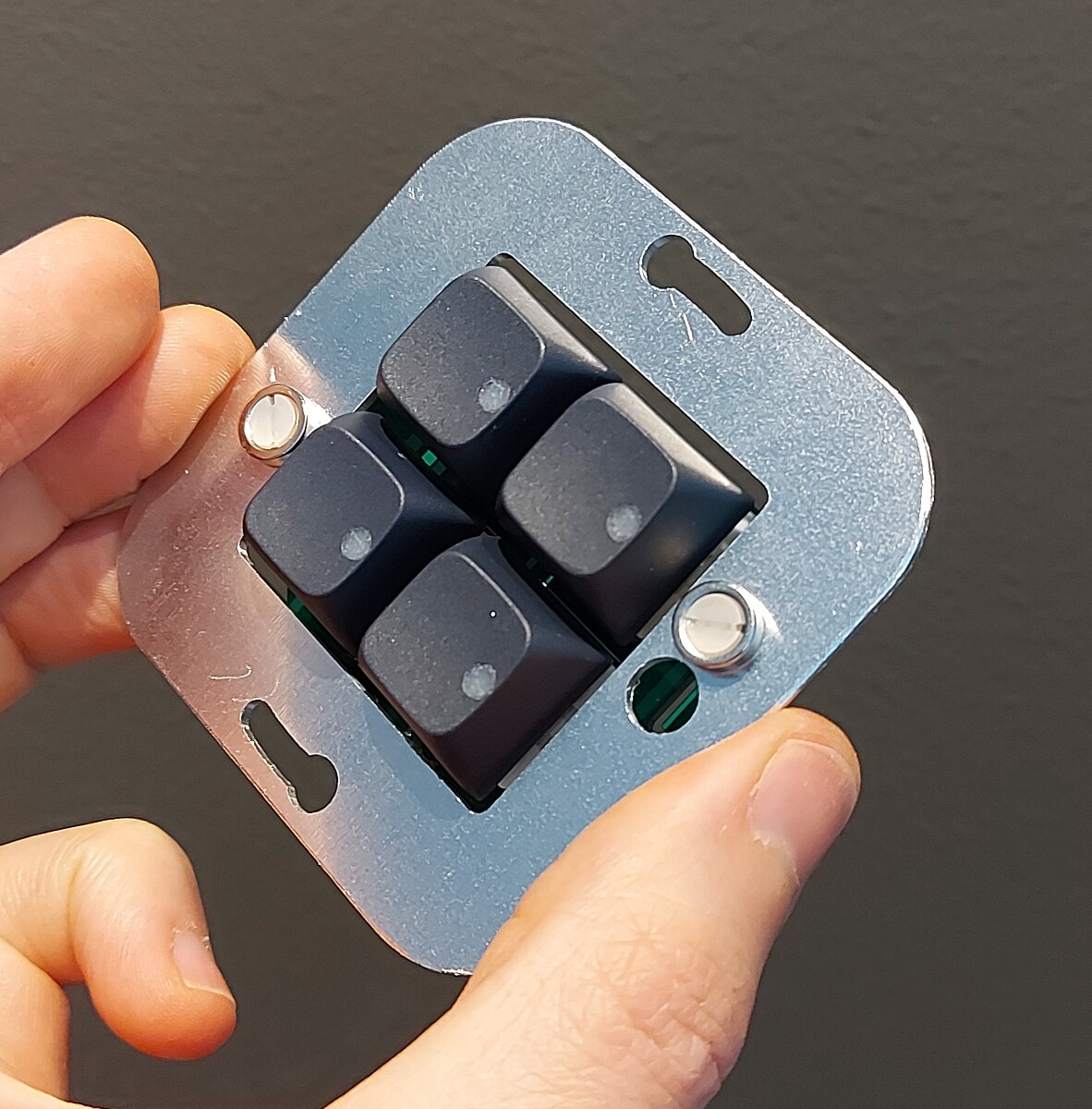

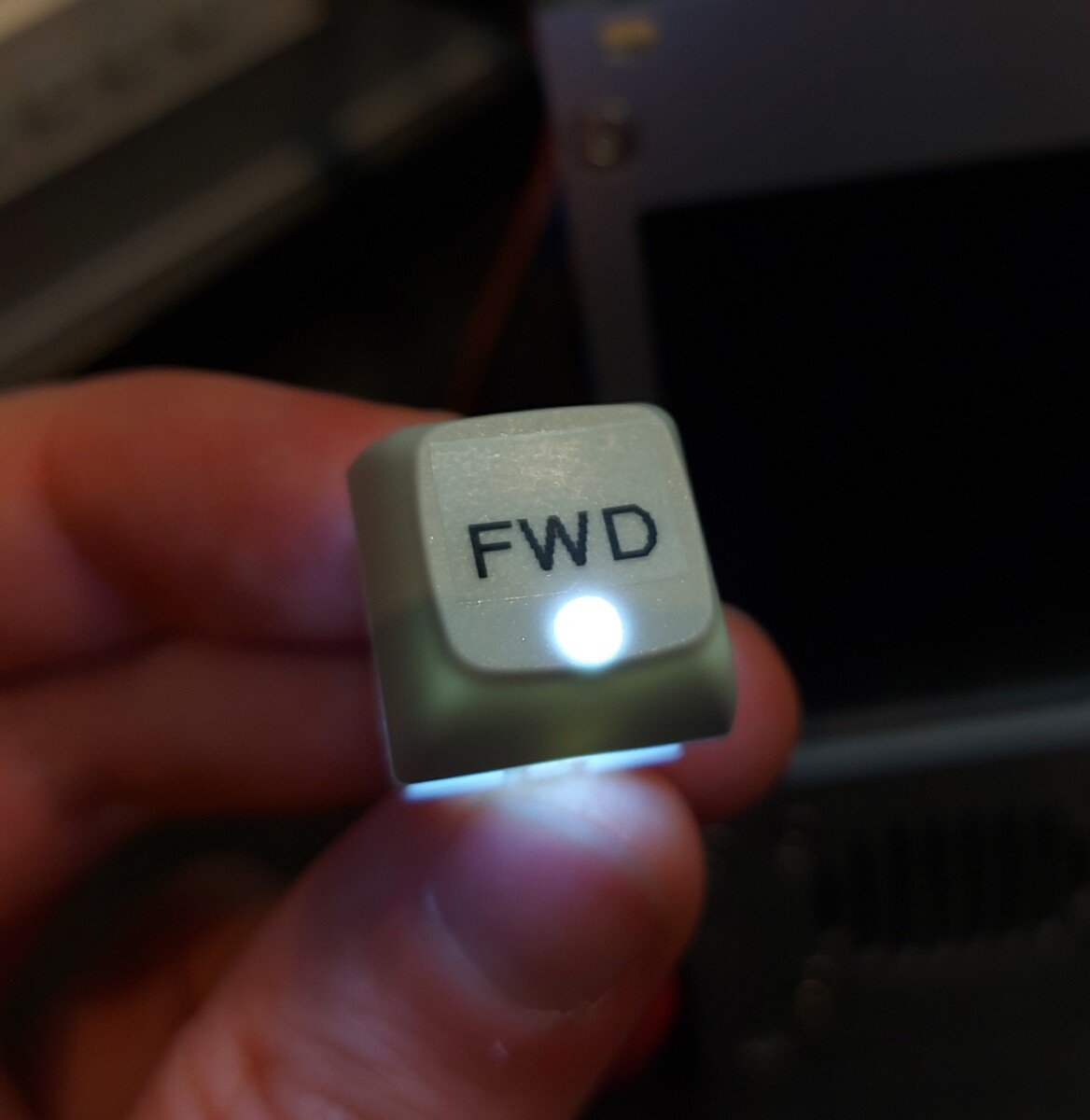

I experimented quite a bit with different keycaps from Aliexpress. None of them had cutouts for LEDs, so I had to make that. The final procedure to produce a keycap with a LED indicator was:

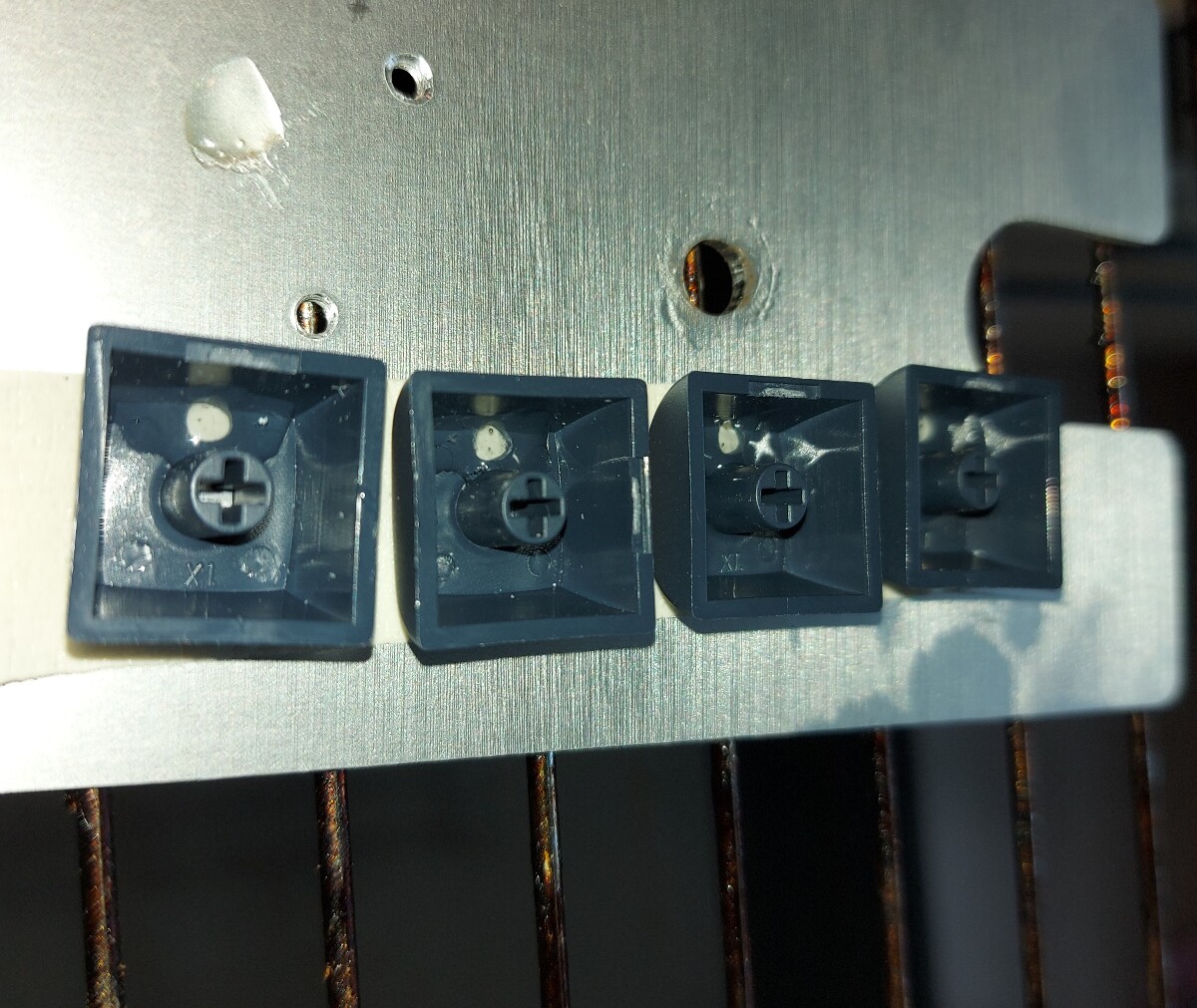

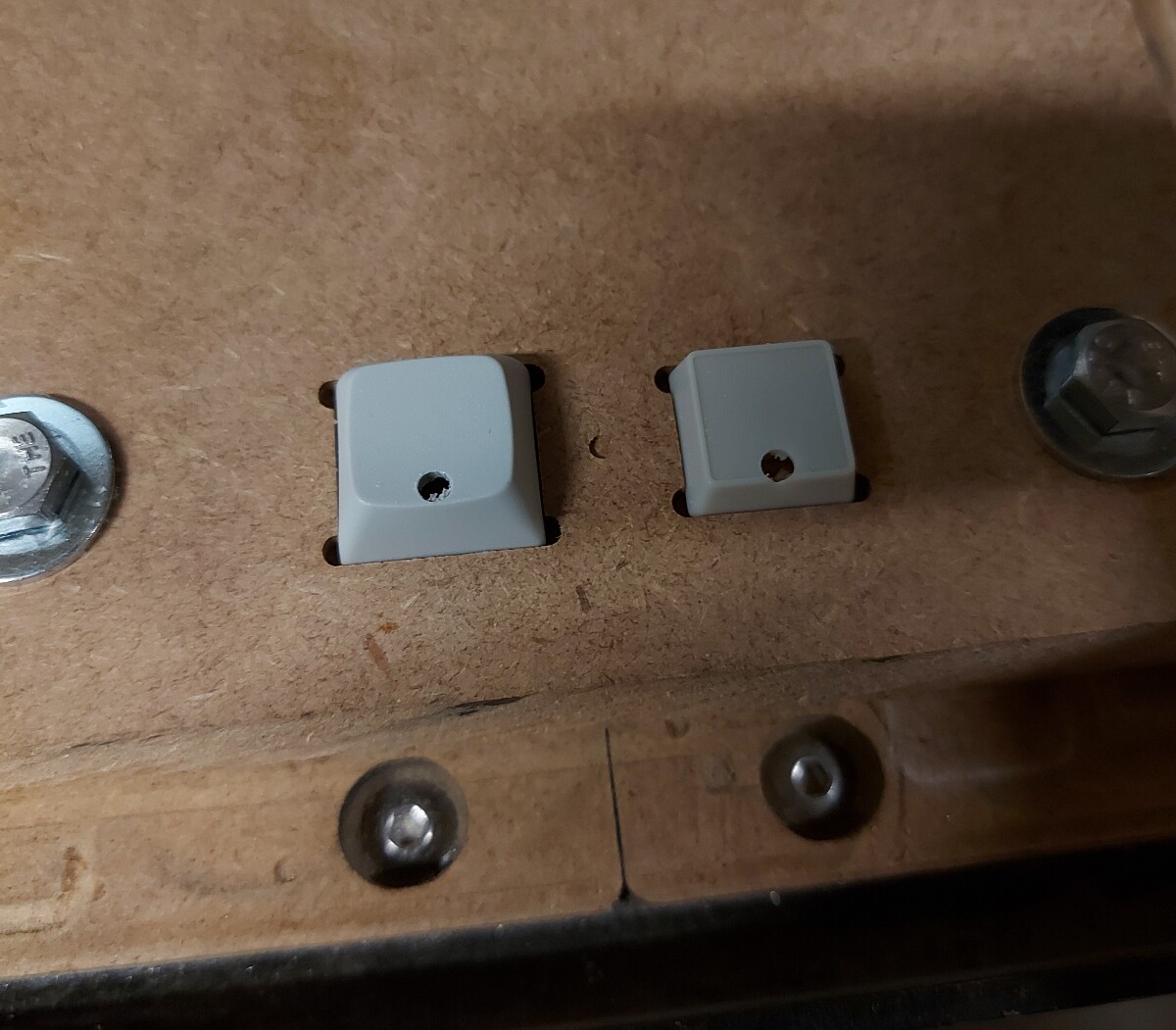

Insert a keycap into a jig to get it aligned properly and run a program that machines a hole
Put masking tape on the front of the keycaps
Leave a small block of hot glue in the keycap and put it in the oven on 100 degrees

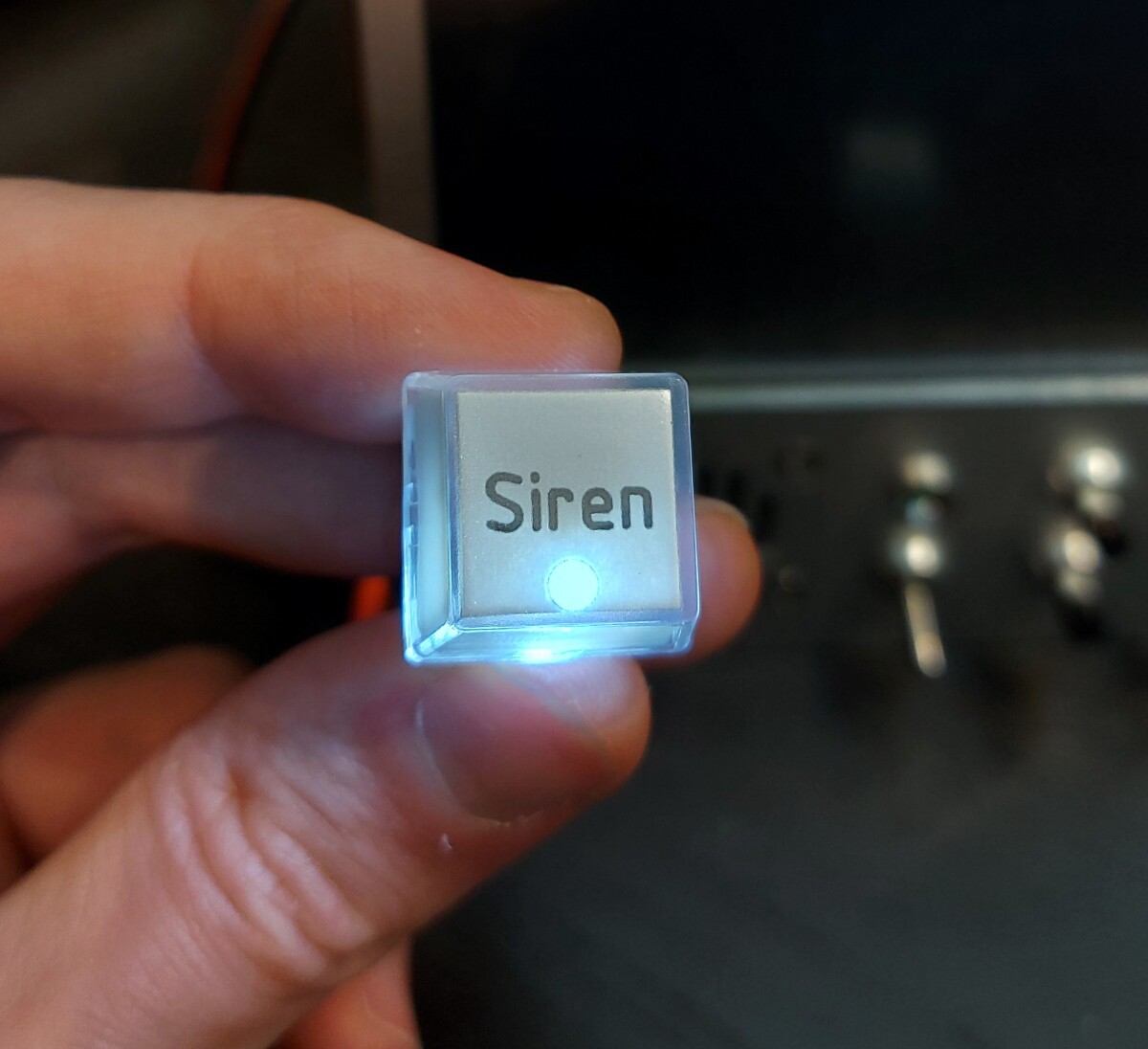

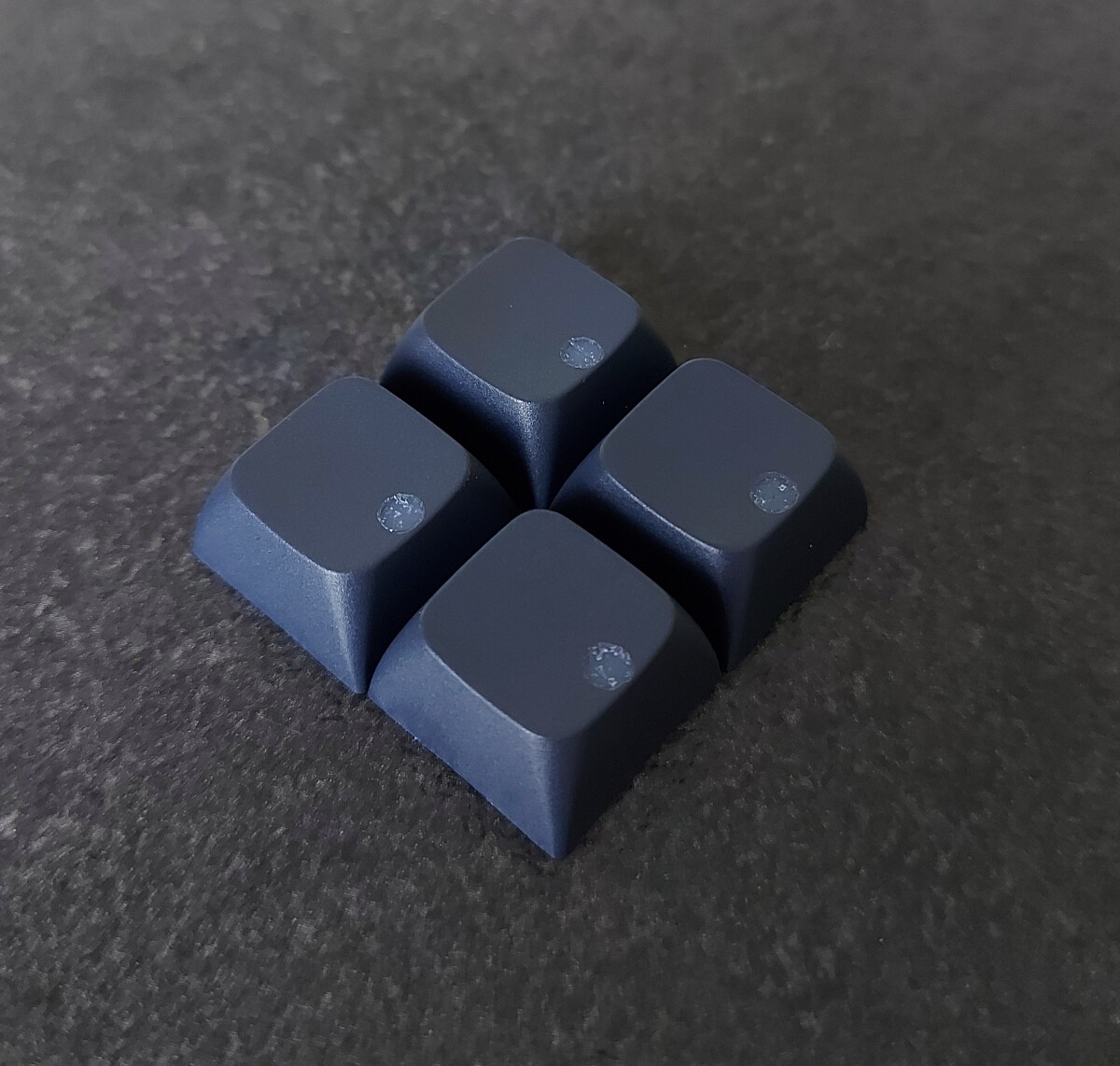

Remove the masking tape. This leave a diffuse transparent surface perfect for viewing the LED from any angle.

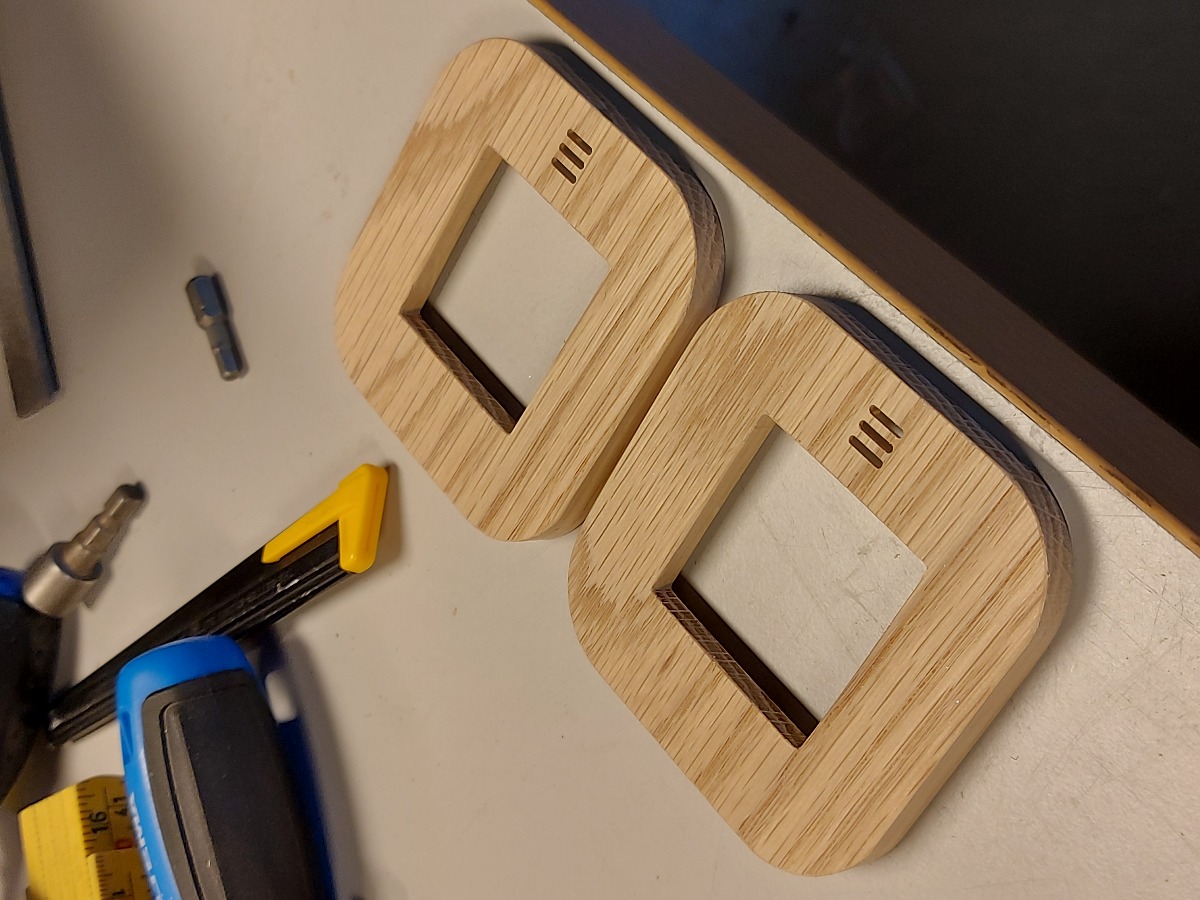

Aluminium frame

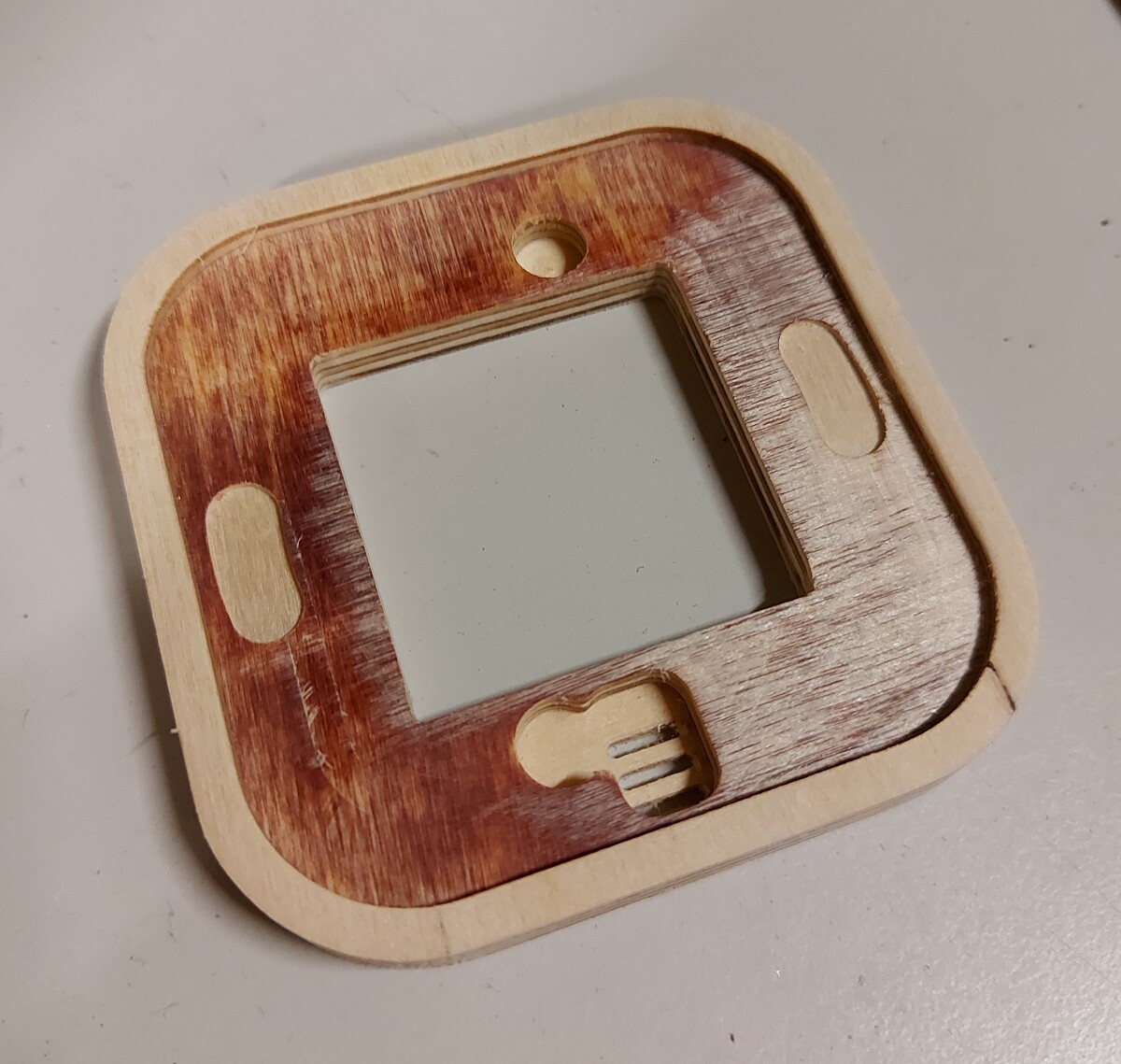

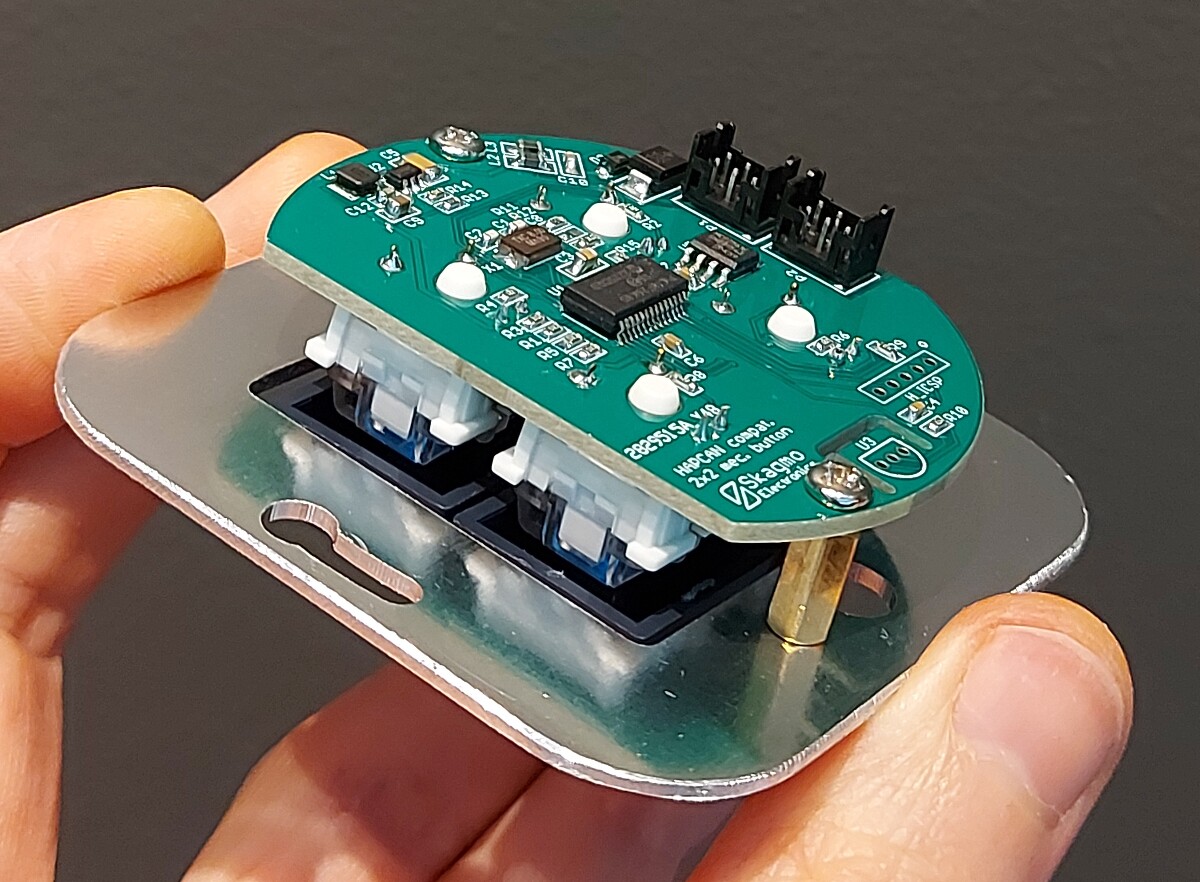

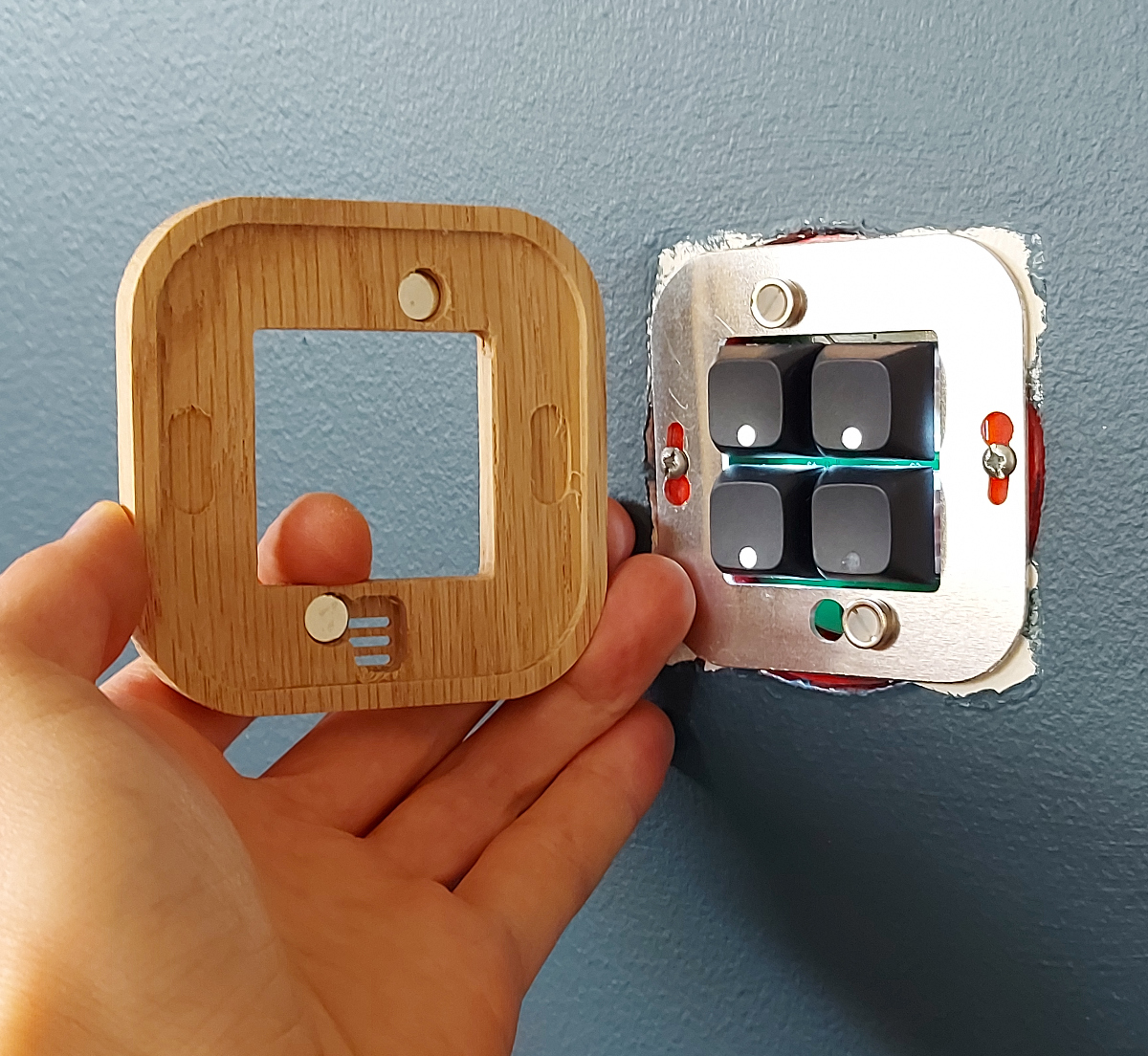

The aluminium frame serves the purpose of mounting both the PCB and the front panel to the wall box. The PCB is mounted with spacers, the front panel snaps on with magnets.
